1/1
Mikron VCE1000 PRO 3 Axis
Ref :
2721071-3-GO
Condition :
Used
Manufacturer :
Mikron
Model :
VCE1000 PRO
Nb Of Axis :
3 Axis
Year(s) :
2012
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

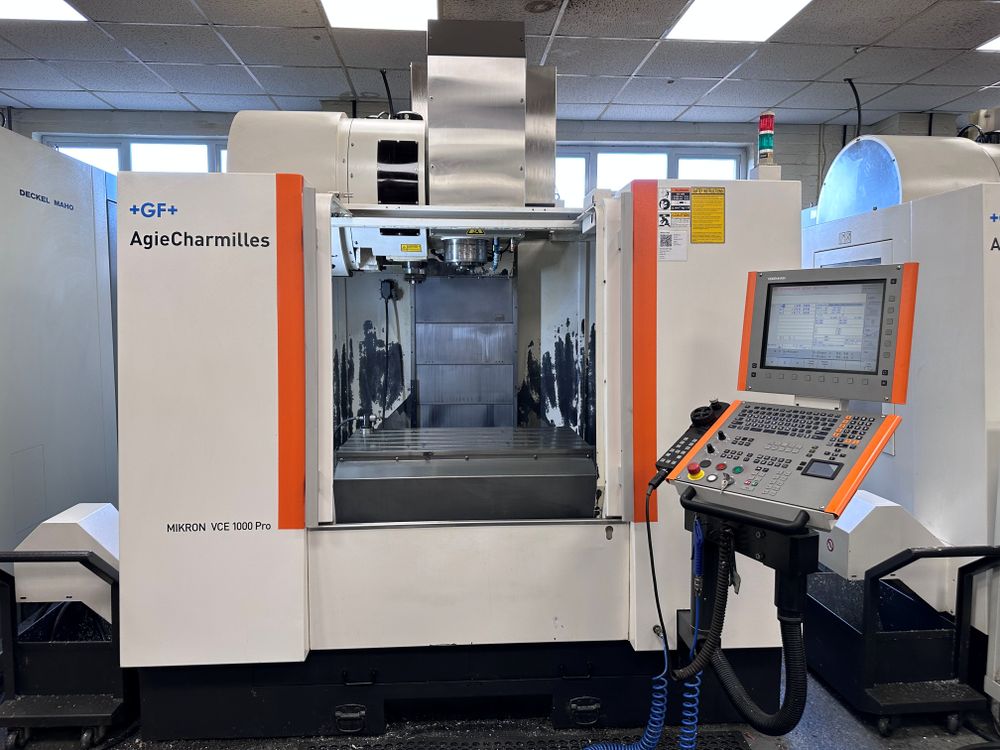

MIKRON VCE1000 PRO
2012
Heidenhain TNC530 CNC
Table size 1000 x 560 mm
T-slots 5 x 18 mm
XYZ travels 1020 x 560 x 600 mm
Maximum workpiece weight 1350 kg
Minimum–maximum height under spindle 735 mm
Tool change capacity 24 stations
Tool holder DIN40
Maximum tool diameter 77 mm
Maximum tool diameter with empty adjacent pockets 115 mm
Maximum tool length 305 mm
Spindle motor power 12 kW
Spindle speed 10000 rpm
Rapid feedrates 40 m/min
Machine weight 6500 kg
Machine dimensions 2270 x 3477 x 2865 mm
Coolant system
Interlocked guards
Low voltage light
Remote hand wheel
Swarf auger
