1/1

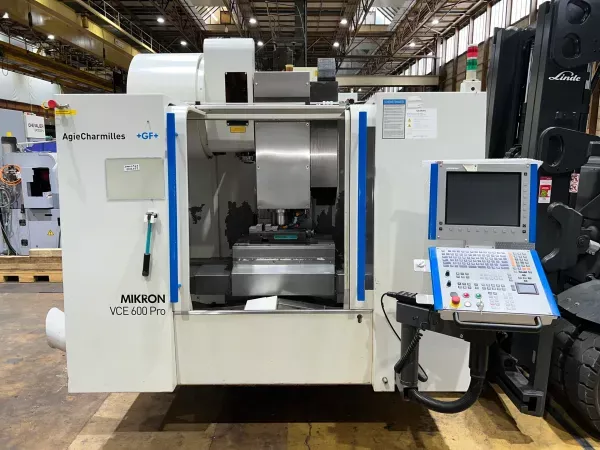

Mikron VCE600+ 3 Axis
Ref :
2746994-3-AW
Condition :
Used
Manufacturer :
Mikron
Model :
VCE600+
Nb Of Axis :
3 Axis
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel 600 mm
Y-axis travel 500 mm
Z-axis travel 540 mm
Control iTNC Heidenhain 530
Drive type Timing belt
Spindle speed 10,000 rpm
Spindle power 12 kW
Spindle torque 96 Nm
Spindle taper ISO 40
Number of tools 24
Max tool weight 6 kg
Tool change time 6 sec
Chip to chip time 8 sec
Table area 700 x 500 mm
Max table load 800 kg
Number of T-slots 5
Distance between T-slots 100 mm
T-slot dimension 18 mm
Coolant system capacity 300 liters
