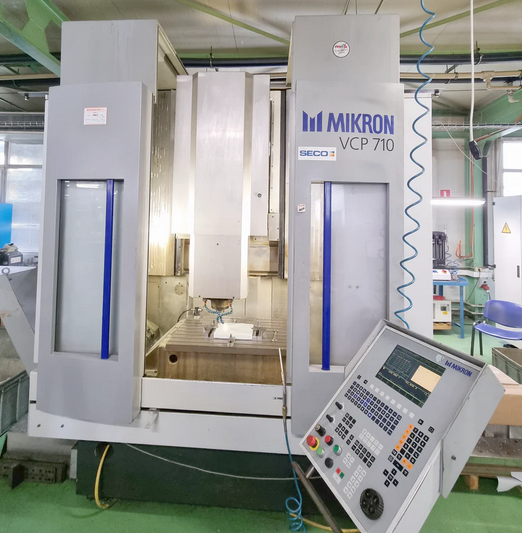

Mikron VCP 710 3 Axis

3-Axis Vertical Machining Center
Control: HEIDENHAIN TNC 426/430
Table Size: 900 x 600 mm
X-Axis Travel: 710 mm
Y-Axis Travel: 550 mm
Z-Axis Travel: 500 mm
Max Table Load: 1,600 kg

Spindle:
Taper: ISO B40
Speed Range: 100 – 12,000 RPM
Spindle Motor: 12 kW

Feed Rates:
X/Y Feed: Up to 15,000 mm/min
Working Feed: 10,000 mm/min
Rapid Traverse X/Y: 30 m/min
Rapid Traverse Z: 20 m/min

Tool Changer:
30 Positions
Max Tool Diameter: 90 mm (140 mm with adjacent pockets free)
Max Tool Length: 300 mm
Max Tool Weight: 8 kg
Tool Change Time: 5 sec

Electrical: 3 x 400V / 50Hz
Total Power Required: 40 kW

Machine Dimensions (L x W x H): 3,085 x 2,270 x 3,055 mm
Weight: Approx. 10,000 kg

Equipped With:
Coolant System
Renishaw Touch Probe
Chip Conveyor
Machine Lamp

Important Note:
Special Offer Machine – Sold As-Is
No warranty or inspection included
