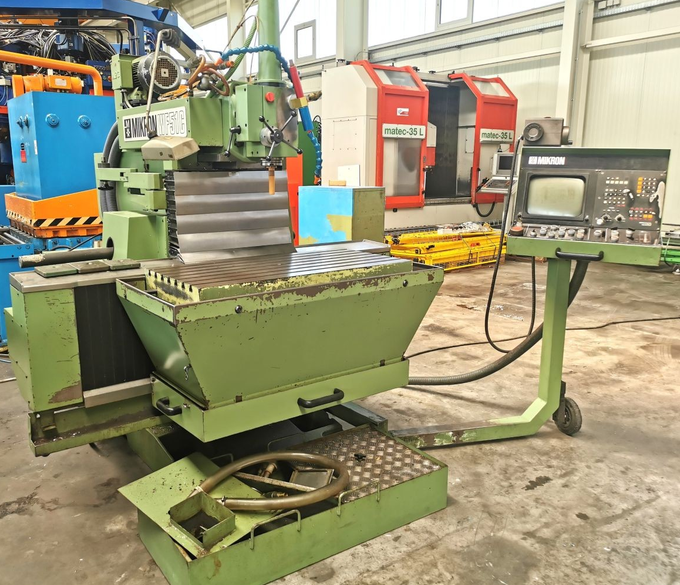

Mikron WF 51 C/155 3150 rpm

Feedrate: 1–3000 mm/min
Rapid traverse X/Y: 6 m/min
Rapid traverse Z: 4 m/min
X-axis travel: 710 mm
Y-axis travel: 500 mm
Z-axis travel: 460 mm
Control: HEIDENHAIN TNC 155
Coolant system
Electronic handwheel
Spindle taper: SK 40
Spindle speed: 31.5–3150 rpm
Spindle motor power: 14 kW
Quill stroke: 110 mm
Distance from spindle nose to table: max. 559 mm
Table size: 1000 × 500 mm
Table load: max. 500 kg
Machine dimensions (L × W × H): 2.20 × 2.30 × 2.15 m
Machine weight: approx. 3.3 t
Vertical head
Hydraulic tool clamping
Extendable quill
Fixed table
