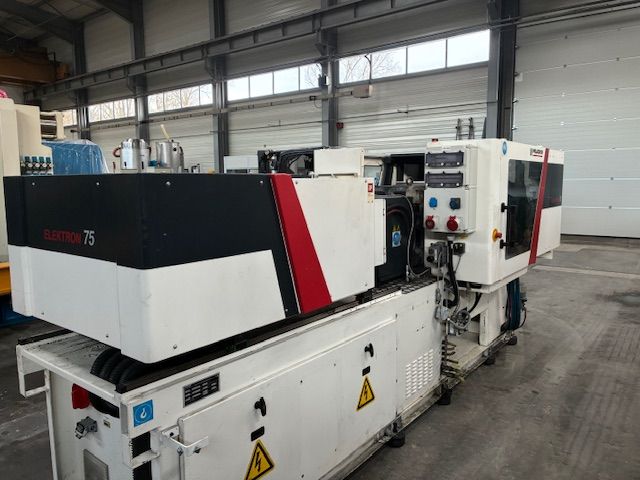

Milacron Elektron EE75 – 300 – 30 Full Electric Injection Press 75 T

Injection Unit
Screw Diameter: 30 mm
Calculated Injection Volume: 113 cm³
Length/Diameter Ratio: 22 L/D
Maximum Injection Flow Rate: 117 cm³/s
Material Pressure: 2500 bar
Number of Temperature Zones: 5 N

Clamping Unit
Clamping Force: 750 kN
Opening Stroke: 320 mm
Maximum Distance Between Platens: 800 mm
Panel Spacing: 405 x 380 mm
Plate Dimensions: 570 x 570 mm mm

General
Heating power: 9 kW
Total installed power: 23 kW
Dimensions: 4.36 x 1.95 x 1.42 m
Weight: 4700 kg

Other
Commissioning date: 2014
Tonnage: 75
