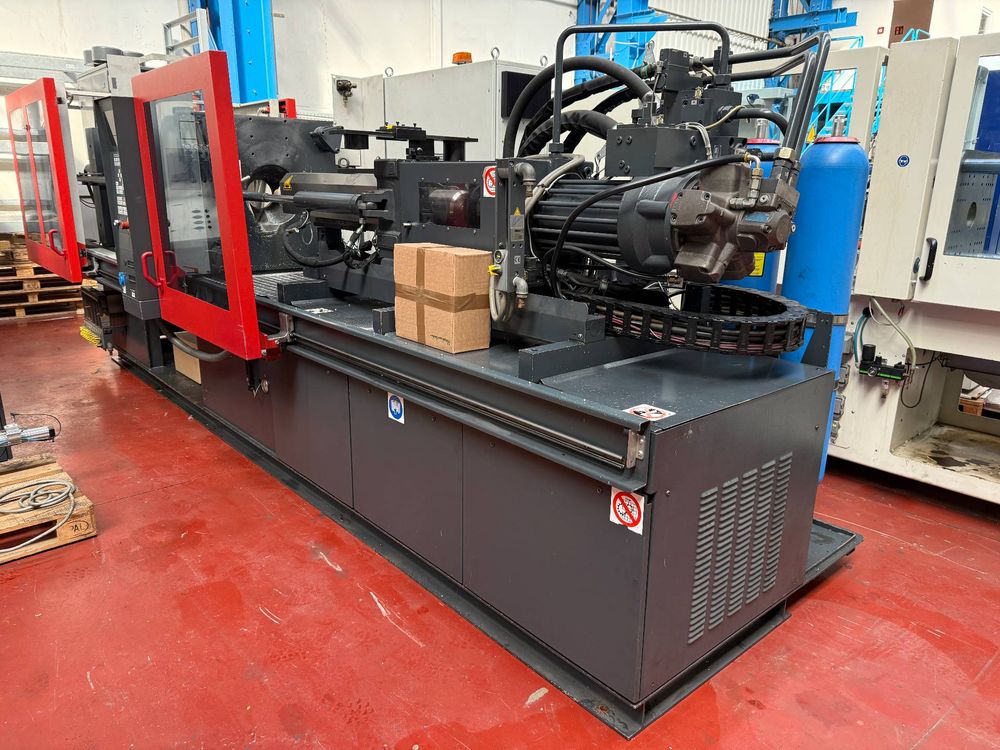

Ferromatik, Milacron K-TEC -200 -1000 S 200 T

Clamping unit
Clamping force 200 ton
Opening stroke 750 mm
Distance between tie bars 560 x 560 mm
Mould height min. 300 mm
Opening width 1050 mm
Platen size (h x v) 830 x 830 mm

Injection unit
Screw diameter 50 mm
Injection volume 441 cm3
Shot weight 395 g
Injection pressure 2268 bar

Measurements and weight
Dimensions 6,9 x 2,0 x 2,6 m
Machine weight 13000 kg

Additional Information:
FERROMATIK MILACRON K-TEC 200S –
Developed for High-Speed Thin-Wall Production

The FERROMATIK MILACRON K-TEC series was
specially developed for thin-wall products,
high-speed cycles and precision injection moulding applications.

One of the most important features of this machine is
its nitrogen-supported hydraulic accumulator system.
This technology enables extremely high injection speeds
and ensures fast and balanced mould filling, especially for thin-wall applications.

The K-TEC series is especially preferred for:
• Thin-wall packaging products
• Technical parts with fine surface details
• Lid and container production
• High-flow applications
• High-speed serial production processes

Advantages of the nitrogen-supported system:
• Extremely fast injection performance
• More stable pressure control
• Better reproduction of fine details
• Improved filling of thin-wall products
• Shorter cycle times
• High process stability

The K-TEC series is also known for:
• High repeatability
• Sensitive mould protection
• Low cycle times
• Long-lasting mechanical construction
• Suitability for heavy industrial operating conditions

The machine was actively running in production until it was removed
from operation and was working without problems until the very end.
