Milacron Maxima MM450 450 T

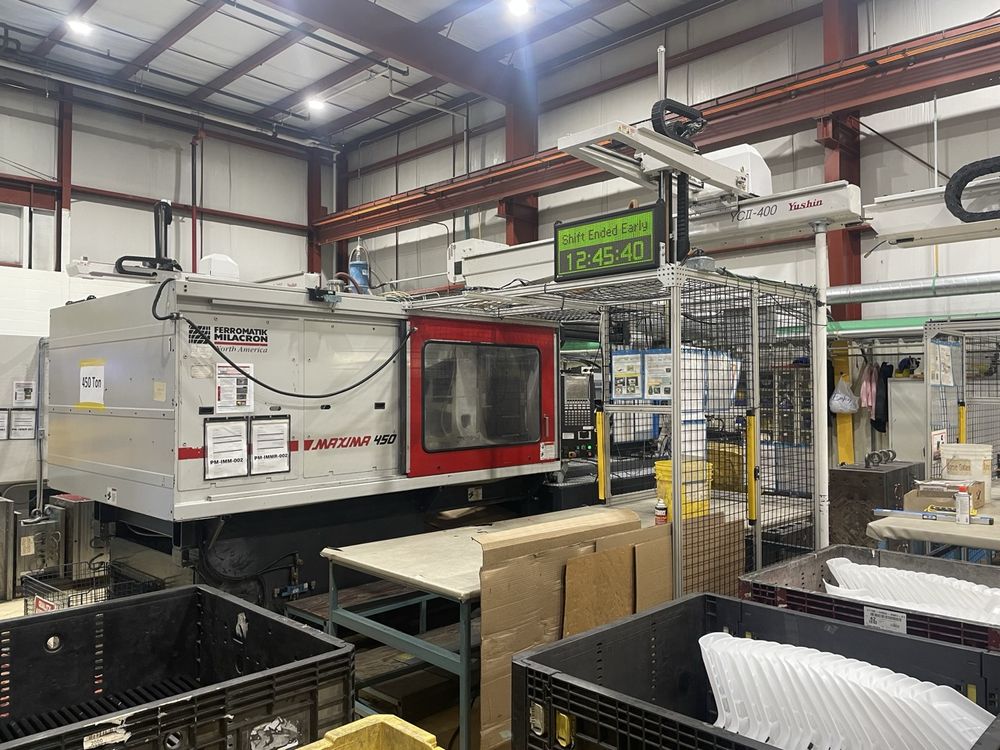

This 2002 Milacron Maxima MM450 is a 450-ton
hydraulic injection molding machine integrated with
a Yushin VCII‑400 Cartesian servo robot.
Known for its direct-acting clamp and compact layout,
the Maxima series is well suited for automotive and large-part molding.
This unit is currently installed and appears functional, offering integrated robotic automation.

Key Features and Specifications
– Clamping Force: 450 tons (≈ 408 metric tons)
– Clamp Stroke: 47.2 in (1199 mm)
– Actuation Type: Hydraulic (direct-acting clamp)
– Orientation: Horizontal injection molding layout
– OEM Footprint Claim: 10–20 % less floor space than comparable models
– Control Voltage: 115 VAC / 24 VDC logic
– Supply Voltage: 460 VAC, 3‑phase, 60 Hz
– Largest Motor Current (FLI): 108 A
– Robot: Yushin VCII‑400 Cartesian Servo Robot (integrated)
– Hydraulic System: Integrated motor/pump base-mounted
– Control Panel: Digital process monitor, function keys, cycle data
– Safety Equipment: Guarding, light curtains, interlocks (visually confirmed)
– Documentation Tags: Wiring, pneumatic,
logic, hydraulic diagram references present
– Cycle Time (Observed): ~16.98 seconds (displayed)
– Cushion Position (Observed): ~1.457 in
