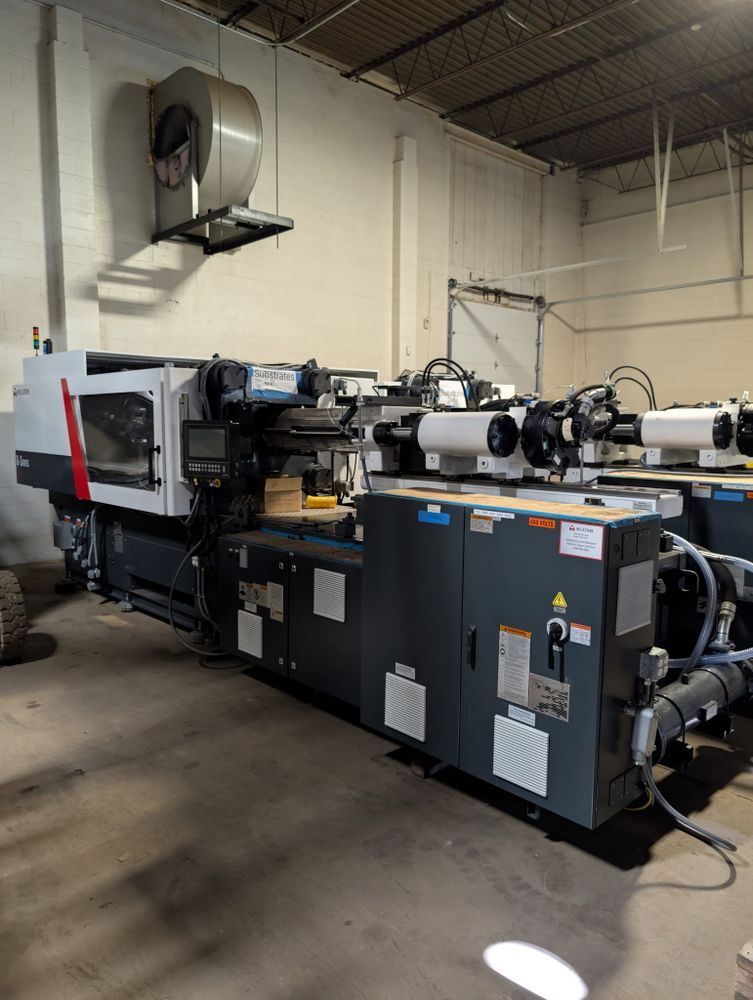

Milacron Q Series 3 330 T

Type Servo-Hydraulic Injection Molding Machine
Clamping Force 330 U.S. Tons (≈ 2,935 kN)
Injection Unit Q 3 Platform – Servo Hydraulic Drive
Shot Size (PS) 17–36 oz
Screw Diameter 50–70 mm
Injection Pressure Up to 30,000 psi (2,068 bar)
Injection Speed 200–350 mm/sec
Platen Size Approx. 33 × 33 in (838 × 838 mm)
Tie Bar Spacing 20 × 20 in (508 × 508 mm)
Daylight Opening 18–44 in (adjustable)
Mold Thickness (min–max) 8 – 36 in
Ejector Stroke 5 – 7 in
Ejector Force ~ 8 tons
Clamp System 5-point toggle mechanism with servo pump control
Drive System Milacron Servo Hydraulic Energy-Efficient System
Controller Mosaic or Momentum Series Touchscreen Control
Pump System Variable speed servo pump for
energy savings (30–60% vs standard hydraulic)
Electrical 480 V / 3-phase / 60 Hz
Husky 36 Zone Altanium Neo5 Controler
Plastrac Auto-Disc Blender – 3 Ingredient Model; 2 Feeders
