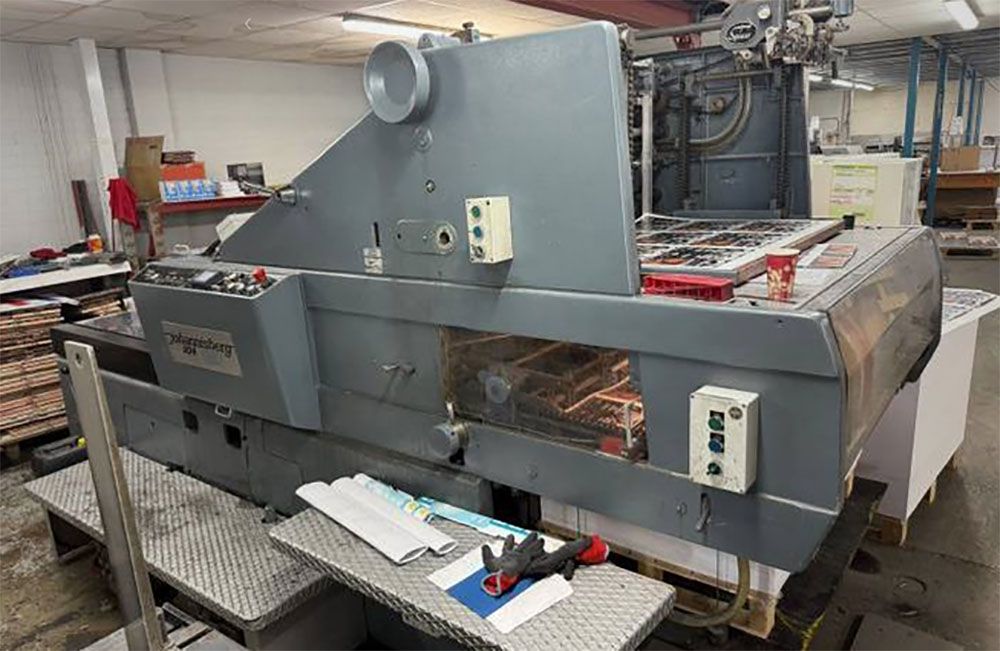

Miller Johannisberg 104S

Cylinder Foil Blocking Machine
Fully rebuilt 2016
2 foil pull rollers
Honey comb chase
PLC control system
Auto sheet feeder
Maximum Mechanical speed: 3500 Impressions per hour
Double sheet detection
Mechanical side & head lays Electronic sensor Head lays
Full safety side door interlock system fitted
Maximum sheet size: 720 x 1040mm
Minimum sheet size: 297 x 420mm
Maximum Stamping Area: 710 x 1020mm
Sheet Thickness: 54 – 400 gm
Minimum Grip Distance: 10mm
Height of Feeder Pile: 500mm
Heidelberg of delivery Pile: 690mm
Foil Handling
Maximum foil diameter 125mm
Foil core size: 25.4mm
Number of foil rewinds: 2 Full width
Maximum foil roll width: 1020mm
Number of Lengths per program: 5
Number of pulls per length: Up to 99
Pull Resolution: 0.1mm
Precision Stepper drive motor driven for total accuracy of foil pull
Heating, Heat Zones: 6
Temperature range: 0-200 degrees centigrade
Standard toggle style die fixing bed / chase
High grade aluminium, machined & ground to a high quality
Thermocouple per zone, providing total control of heat distribution
Set for 6.35mm die height (can be converted to 7mm)
