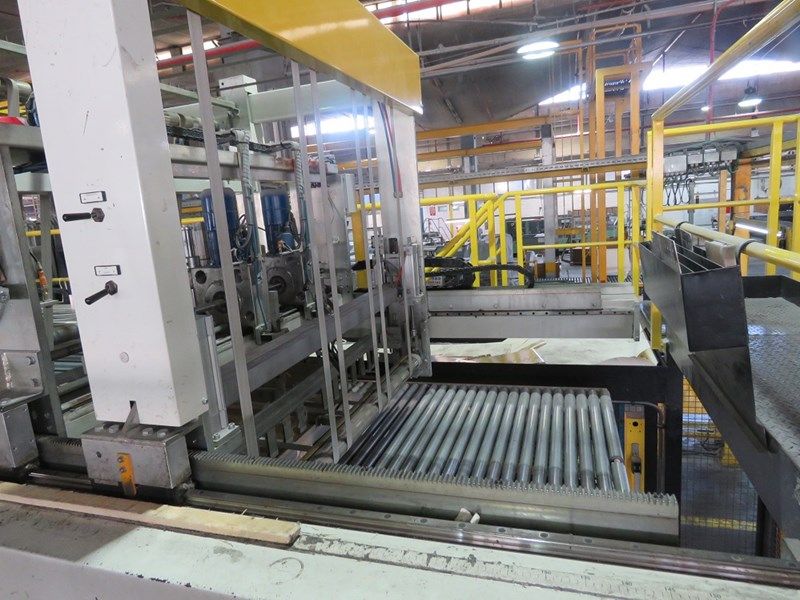

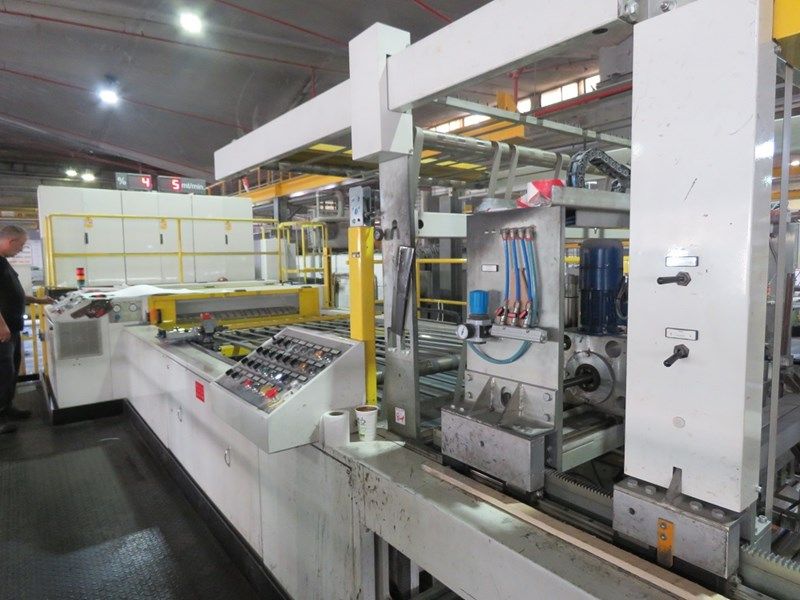

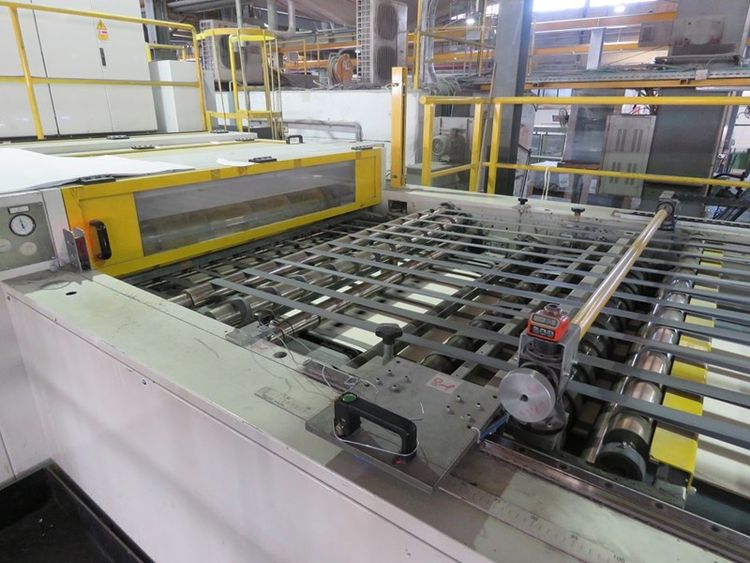

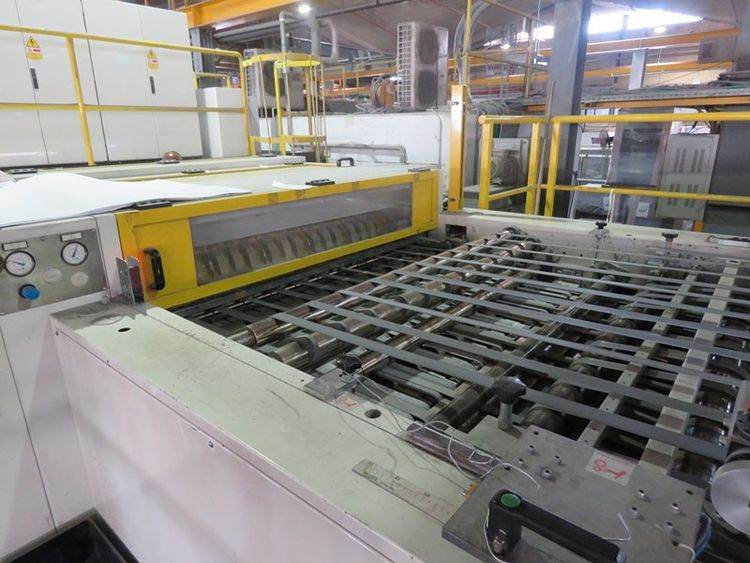

Milltex 1.450 mm SYNCROFLEX sheeter

SHEETER. SLITTER
TYPE SYNCROFLEX
1.1. Paper qualities – uncoated paper weight 60-170 g/m².
1.2. Max. paper width after trim – 1450 mm.
1.3. Min. paper width – 430 mm.
1.4. Max. format length – 1400 mm.
1.5. Min format length – 500 mm.

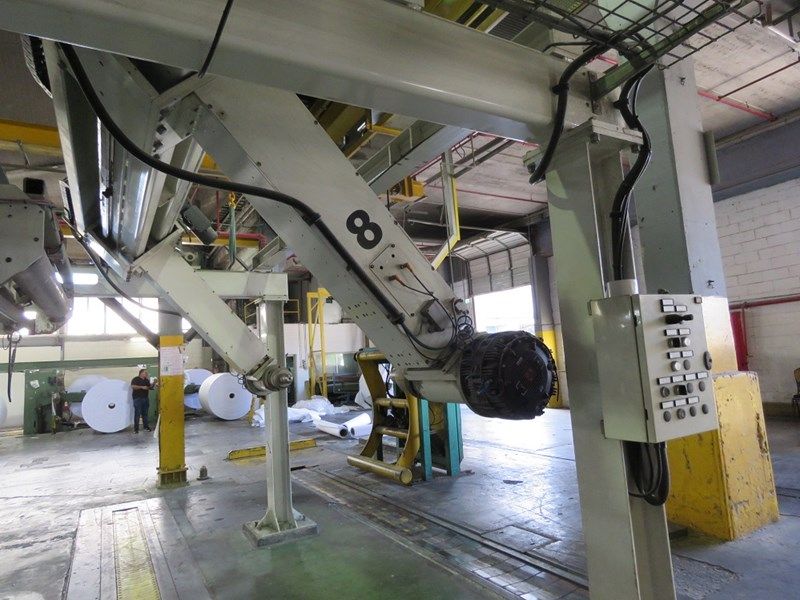

2.1. Number of unwinds – 8 pc.
2.2. Chuck diameter – 3" and 6".
2.3. Roll diameter – 400-1500 mm.
2.4. Roll width – 450-1470 mm.
2.5. Max. production speed – 300 m/min.
2.6. Max. blade load – 600 gr/m².

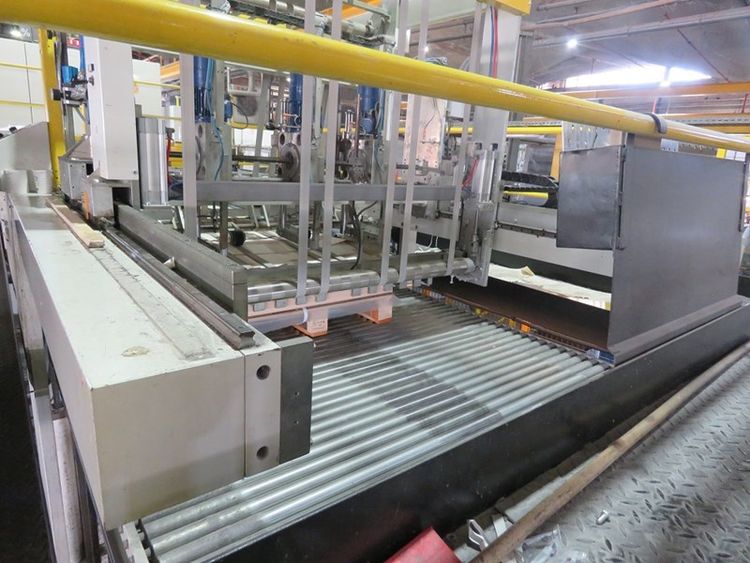

2.7. Max. stacking height – 1600 mm. pallet included.
2.8. Max. pallet weight – 1500 kg.
2.9. Max pallet width – 1440 mm.
2.10. Min. pallet width – 450 mm.
2.11. Max pallet length – 1400 mm.
2.12. Min. pallet length – 500 mm.
