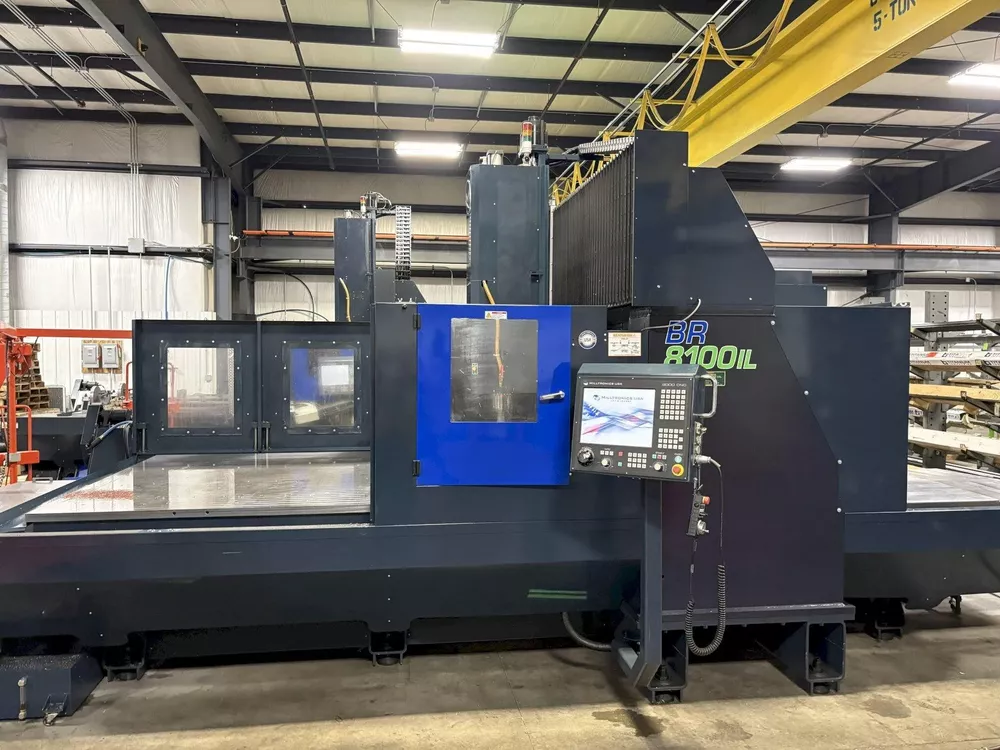

Milltronics BR8100IL 3 Axis

Technical Data
X axis travel: 100 in
Y axis travel: 80 in
Z axis travel: 28 in
Rapid traverse rate X/Y/Z: 1000 IPM
Maximum cutting feed rate: 500 IPM
Control: Milltronics 9000-DGI CNC control
Table size: 80 in x 100 in
Allowable table load: 5000 lbs
Spindle taper: BIG-PLUS ISO 40
Spindle speed: 15000 rpm
Spindle motor power: 24 / 15 HP
Spindle torque: 85 ft-lbs
Tool shank: CT-40
Automatic tool changer: 24 pocket carousel
Maximum tool diameter: 3.5 in
Maximum tool length: 11 in
Maximum tool weight: 15 lbs
Machine height: 152 in
Floor space required: 280 in x 164 in
Machine weight: 29500 lbs
Power requirement: 48 kVA / 125 A
Voltage requirement: 208 – 240 V / 3 phase

Features / Equipment
15 in color LCD touch screen display
120 GB solid state hard drive
Solid model graphic display
Networking capability
Remote handwheel
Rigid tapping
Tri-color end of cycle light
LCD hour meter
Spare M function
DXF file import
Rest roughing machining cycle
Spindle air purge
45 mm linear roller way technology
Automatic lubrication system
X-axis metal way cover
Spindle chiller
Chip management system with augers and conveyor
Renishaw OMI-2T interface
Renishaw OMP40-2 optical spindle probe with macro
Renishaw OTS contact tool setter with macros
