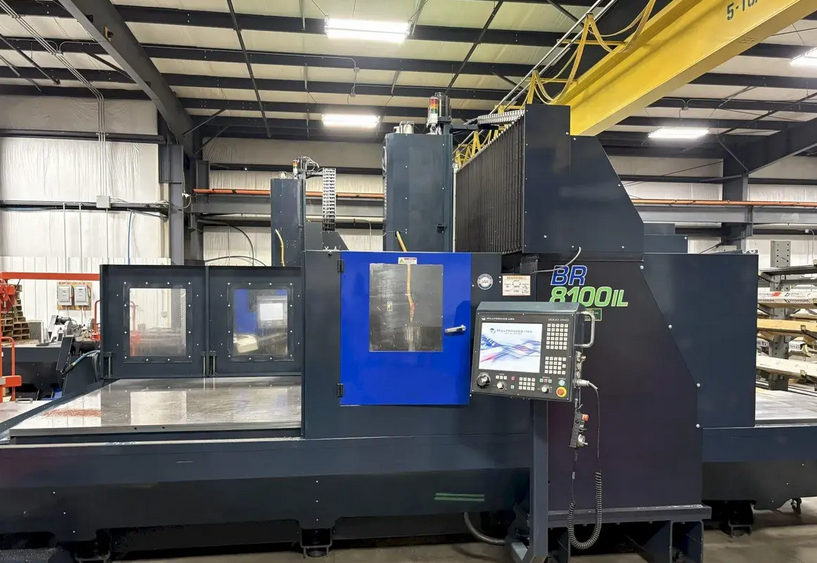

Milltronics BR8100IL 3 Axis

X-Axis Travel: 100"
Y-Axis Travel: 80"
Z-Axis Travel: 28"
Rapid Traverse: 1000 IPM
Maximum Cutting Feed Rate: 500 IPM
3 Axis
Control: Milltronics 9000-DGI CNC
15" Color LCD Touchscreen
120 GB Solid State Drive
Solid Model Graphic Display
Networking
Remote Handwheel
Rigid Tapping
Tri-Color End of Cycle Light
LCD Hour Meter
Spare M Function
DXF File Import
Rest Roughing Machining Cycle
Spindle Air Purge
45 mm Linear Roller Way
Automatic Lubrication System
X-Axis Metal Way Cover
Spindle Chiller
Chip Auger and Conveyor
Renishaw OMI-2T Interface
Renishaw OMP40-2 Optical Spindle Probe
Renishaw OTS Contact Tool Setter
Spindle Speed: 15,000 RPM
Spindle Power: 24/15 HP
Spindle Torque: 85 ft-lbs
Spindle Taper: CT40 Big Plus
24-Tool Carousel ATC
Maximum Tool Diameter: 3.5"
Maximum Tool Length: 11"
Maximum Tool Weight: 15 lbs
Table Size: 100" x 80"
Table Load Capacity: 5,000 lbs
Spindle to Table Distance: 4"–32"
Machine Dimensions: 280" x 164" x 152"
Machine Weight: 29,500 lbs
Power Requirement: 48 kVA / 125 A
Voltage: 208–240V / 3 Phase
