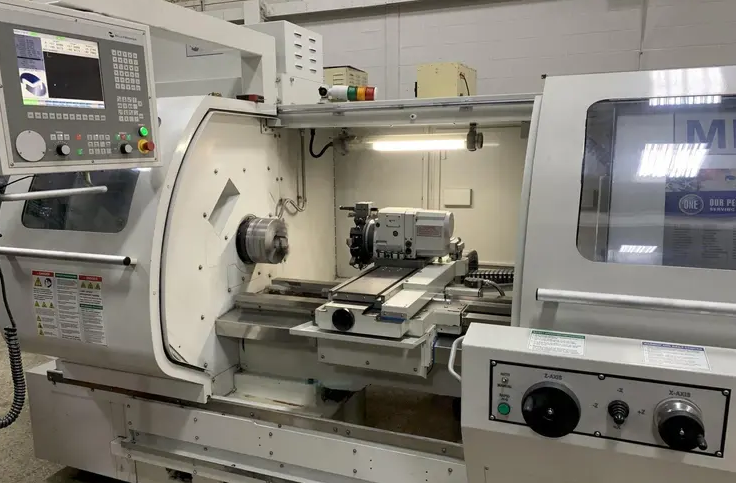

Milltronics Milltronics 8200-B CNC 4,000 RPM ML16/40 2 Axis

X-axis travel: 11"
Z-axis travel: 44.5"
Swing over bed: 17"
Swing over gap: 25.9"
Gap distance: 12.75"
Swing over cross slide: 7.48"

Control: Milltronics 8200-B CNC
Automatic lubrication
Coolant pump
Dual hand wheels

Bar capacity: 2"
Turning diameter: 22"

Spindle speed range: 100–4,000 RPM
Spindle motor power: 18 / 12 HP (peak / continuous)
Spindle nose: A1-5
Spindle bore: 2.05"
Sub-spindle: No

Live tooling: No
Y-axis milling: No

Rapid traverse rate (X/Z): 500 IPM
Maximum cutting feed rate: 100 IPM

Chuck size: 8"
Chuck type: 3-jaw
Turret positions: 8
Tool size: 0.75"
Boring bar capacity: 1.25"
Tool selection: Bi-directional

Tailstock: Yes
Tailstock quill travel: 6"
Tailstock quill diameter: 2.55"
Tailstock quill taper: MT4

Machining length: 48"
Machine dimensions: 120" × 83" × 80"
Machine weight: 6,000 lbs
Power requirement: 23 KVA / 60 amps
Voltage: 208 / 240 V, 3-phase

8-position automatic indexing turret
8" chuck
Steady rest
Tailstock
