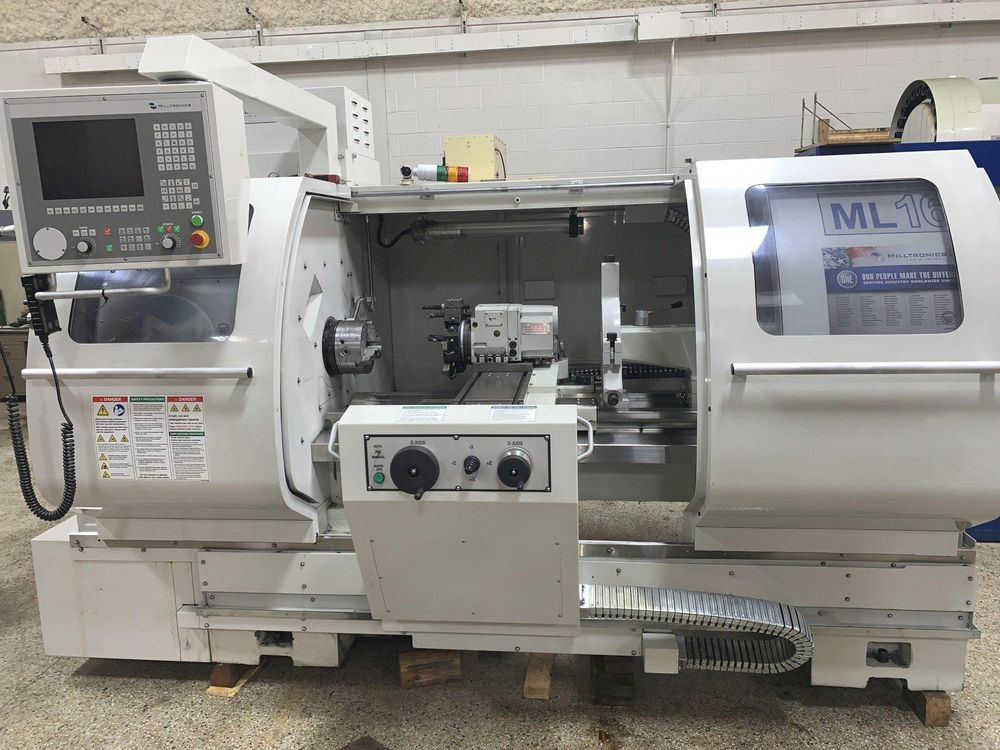

Milltronics Milltronics CNC Control 4000 RPM ML16/40 2 Axis

X-Axis Travel 11"
Y-Axis Travel 44.5"
CNC Control Milltronics CNC Control
Swing Over Bed 17"
Swing Over Gap 25.9"
Gap Distance 12.75"
Swing Over Cross Slide 7.48"
Spindle Nose A1-5
Spindle Bore 2.05"
Spindle Speed 100–4000 RPM
Spindle Motor 18/12 HP (peak/continuous)
Tailstock Quill Travel 6"
Tailstock Quill Diameter 2.55"
Tailstock Quill Taper No. 4 MT
Number of Tools 8
Tooling Size 0.75"
Boring Bar Capacity 1.25"
Tool Selection Bi-directional
X, Z Axis Rapid Traverse Rate 500 IPM
Max Cutting Feed Rate 100 IPM
X-Axis Ball Screw Diameter 1"
Z-Axis Ball Screw Diameter 1.57"
Machine Height 80"
Floor Space Required 120" x 83"
Machine Weight 6000 lbs
Power Required 23 KVA / 60 amps
Voltage Required 208/240 volts / 3 phase
Equipped with 8 Position Auto Indexing Turret
Equipped with Dual Hand Wheels
Equipped with 8" Bison 3-Jaw Chuck
Equipped with Steady Rest
Equipped with Tailstock
Equipped with Auto Lubrication
Equipped with Coolant Pump
