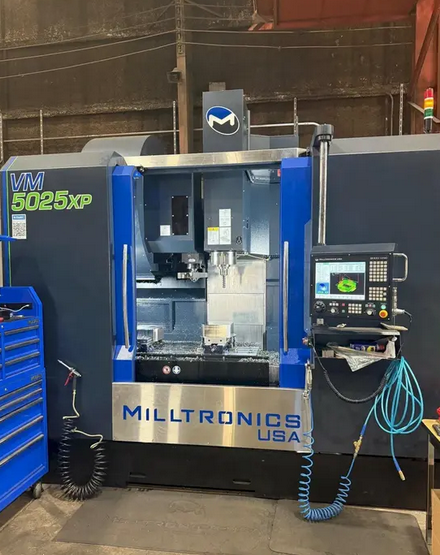

Milltronics VM5025XP 3 Axis

X-axis travel: 50 in
Y-axis travel: 25 in
Z-axis travel: 24 in
Rapid traverse X-axis: 1000 IPM
Rapid traverse Y-axis: 1000 IPM
Rapid traverse Z-axis: 787 IPM
Maximum cutting feedrate: 500 IPM
Control type: CNC
CNC control: Milltronics 9000 series
Touchscreen display: 15 in color LCD
Rigid tapping
Swing: not specified
Spindle speed: 8000 rpm
Spindle motor power: 24 HP
Spindle motor power peak: 35 HP
Spindle taper: No.50
BIG-PLUS tool support
Automatic tool changer capacity: 30 tools
ATC type: Double arm
Tool shank type: CT50
Maximum tool diameter: 4.9 in
Maximum tool diameter with adjacent pocket empty: 8.7 in
Maximum tool length: 11.8 in
Maximum tool weight: 33 lb
Table length: 54 in
Table width: 25 in
Maximum table load: 4190 lb
T-slot width: 0.71 in
T-slot spacing: 3.94 in
Number of axes: 3
Machine height: 123 in
Floor space width: 128 in
Floor space depth: 108 in
Additional width for conveyor discharge: 37 in
Machine weight: 29,100 lb
Power requirement: 38 kVA
Voltage: 208–240 V
Power supply: 3 phase

Features / equipment
30-pocket automatic tool changer
8000 rpm belt-driven spindle
Chip conveyor
Chip washdown system
Full enclosure with side doors
Spare M-function
Solid model graphic display
120 GB solid-state hard drive
DXF file import
Rest roughing machining cycle
