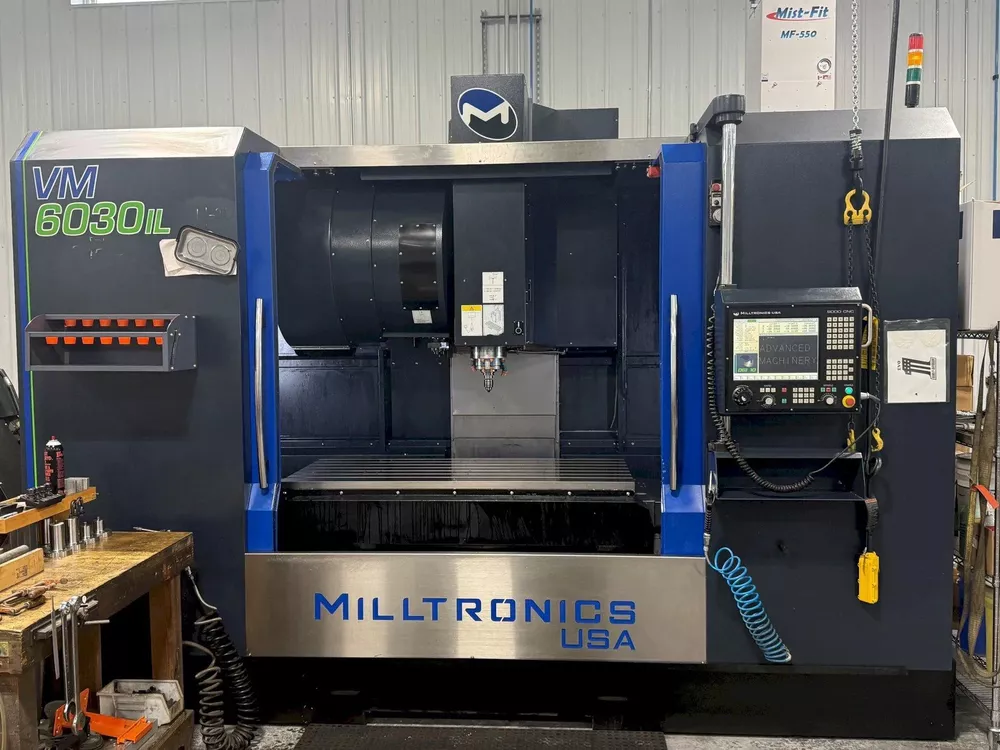

Milltronics VM6030IL 3 Axis

X axis travel: 60"
Y axis travel: 30"
Z axis travel: 24"
Milltronics 9000 Series CNC Control version 10.2.9742
15" color LCD touch screen display
Linear Roller guide way construction
Spindle load meter
Spindle air purge
Automatic lubrication
Chip conveyor
Chip wash down
Full enclosure with side doors
Flood coolant
Dual enclosure work lights
Rigid tapping
Spare "M" function
Solid model graphic display
120 GB solid state hard drive
DXF file import
Rest machining cycle
Spindle chiller
Mist Fit Model MF-550 Mist Collection Unit
New Z-Axis Ballscrew and Thrust Bearings installed March 2026
Swing over bed: 30"
Standard spindle speed: 15,000 rpm (Inline Spindle)
AC spindle motor: 35/25 HP
Spindle taper: ISO No. 40
Spindle nose to table distance: 4" to 28"
Way cover to spindle center: 32.4"
Max cutting feed rate: 500 ipm
X, Y, Z rapid traverse rate: 1000/787 ipm
ATC Type: Double Arm, 30 pocket
Tool shank: CT40
Pull stud: MAS 60deg Retention Knob Style CT-Flange 40 Taper
Max tool diameter / adjacent pot empty: 3.1" / 5.1"
Max tool length: 11.8"
Max tool weight: 15 lbs.
Table size: 66" x 30"
Allowable table load: 3000 lbs.
T-slot size (7 total): 0.71" (18mm) on 3.94" (100mm) centers
Machine height: 123"
Floor space required (W x D): 150" x 115"
Machine weight: 21,800 lbs
Power required: 48 KVA / 125 amps
Voltage required: 208-240 volts / 3 ph
