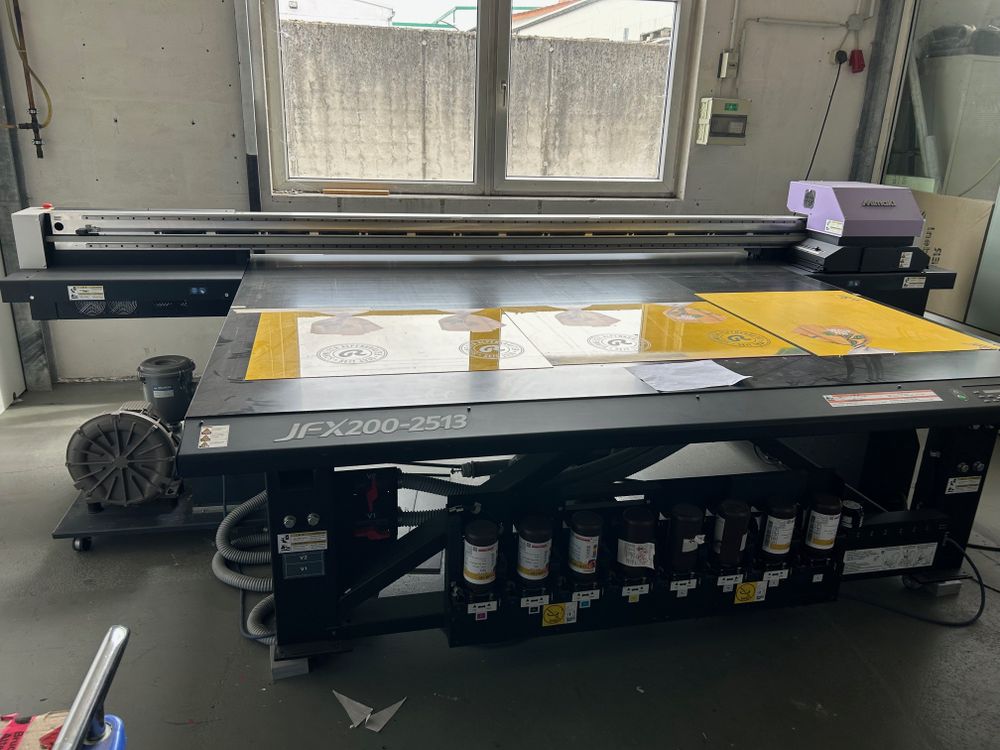

Mimaki JFX 200-2513 undefined 2500 x 3100 mm

UV LED Flatbed Printer Used
One print bed in the format of 2500 x 1300 mm or 2500 x 3100 mm (model 2531)
High speed: Prints up to 25 m²/h or up to eight sheets/h (4C color configuration) in the format 2440 x 1220 mm
and up to approx. 12.5 m²/h (4C+W color configuration) with simultaneous white printing
New ink supply: The 1-liter ink bottles can be easily replaced from the front – making refilling much faster!

Easy operation – no alignment problems: Equipped with guide pins and a printed ruler for precise media positioning on the print bed.
The registration pins secure the media against slippage.
Thanks to the measuring scale, layout and RIP data can be easily adjusted to the position.
Greater flexibility through direct printing, even on thick media: printing on plates up to 50 mm thick.

Reduced banding thanks to the Mimaki Advance Pass System.
A special Mimaki circulation system prevents white ink from settling.
Mimaki Clear Control (MCC): For glossy surfaces – to prevent dust adhesion and the formation of small air bubbles,
MCC simultaneously reduces ink drying time and UV light exposure.
This results in both glossy and stylish matte finishes.
Furthermore, multiple layers of clear varnish can be used to create a raised print effect, resulting in a multi-dimensional look.

Convenient ink selection:
- LH-100 hard UV inks for all smooth surfaces with high scratch resistance, color brilliance, and solvent resistance
- LUS-150 flexible UV inks for smooth and uneven surfaces, approximately 150% deformable and therefore suitable for a wide variety of substrates
- White ink for image underlay reduces light transmission
- Two-layer printing with white on clear and colored surfaces
- Finishing of prints with a glossy or matte varnish finish

Environmentally conscious printing: No release of harmful substances due to UV printing technology.
Lower power consumption and longer lifespan thanks to UV LED lamps

RasterLink 6
- High-performance RIP supports excellent color reproduction
- Different print jobs can be easily nested
- Simple and user-friendly operation
- Self-explanatory icons help you find your way around quickly
- Thematically related RIP settings are grouped in one window and can be saved as favorites for repeated use
- The printing process is monitored directly in the main window
- The software can be updated at any time via the internet; profiles can be downloaded or updated.

Printing method: Piezo inkjet
Printhead: 2 heads in staggered arrangement
Max. print format (W x L): 2500 × 1300 mm
Max. material format (W x L): 2500 × 1300 mm
Max. material thickness: 50 mm
Max. material weight: 50 kg with even weight distribution
Print resolutions: 300, 450, 600, 900, 1200 dpi
Print media suction: Vacuum
Number of vacuum zones: 2 sections (in the X-axis)
Accuracy: Absolute ± 0.3 mm or ± 0.3% of the specified distance (whichever is greater)
Repeatability: ±0.2 mm or ±0.1% of the specified distance (whichever is greater)
Curing: UV LED technology (lifespan*² over 5000 h) (Reference value. This lifespan cannot be guaranteed.)
USB 2.0 interface
Power consumption up to 2.88 kW
Electrical connection 200 V - 240 V, 50/60 Hz single-phase, up to 12 A
Dimensions (W x D x H) 4400 × 2250 × 1250 mm
Weight 650 kg
