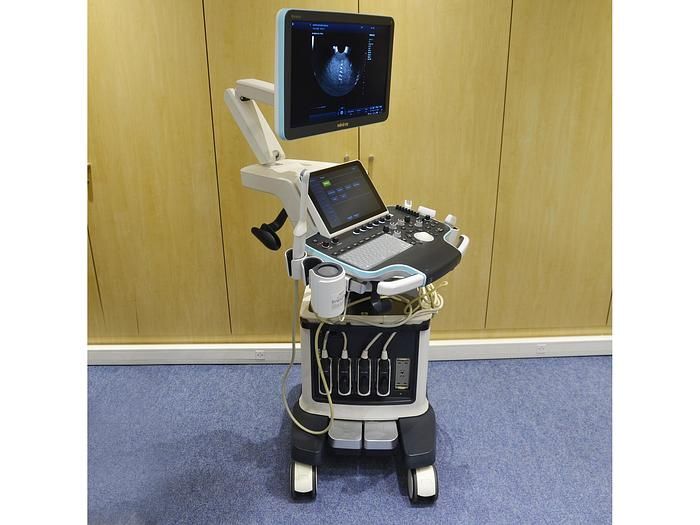

Mindray Resona 7

4-PROBE SET
(abdominal SC5-1U, long linear L11-3U, short linear L14-5WU,
endocavity V11-3HU)

Key Features:
• 21.5-inch LED-backlit monitor
• 12.1-inch touchscreen with gesture control
• 6-dimensional mobile control panel
• Gel warmer with temperature control
• Pinless sensor with indicator light
• Locks in normal position and upon rotation
• ZST+ Technologies - a unique and
innovative data processing method
• Smart Planes is a user-friendly tool that significantly
improves scanning efficiency by increasing accuracy combined
with task automation. With a single press of a button,
standard CNS scan planes are instantly obtained from
the 3D data obtained during fetal brain scanning: MSP
(medial sagittal plane), TCP (transcerebral plane),
TTP (transthalamic plane), and TVP (transventricular plane),
as well as the measurements obtained from them
(BPR, LA, LZR, transverse cerebellar diameter,

Cistern magna and lateral ventricle width).
• Smart FLC - automatically determines the number of follicles and
calculates the volume of each follicle using 3D ovarian data.
This allows for an accurate assessment of follicle size, which is
particularly important during IVF.
• Smart OB/NT - automatic measurement of basic fetometric
parameters, including BPR (measurement and calculation of
bipariental head size), OG (head circumference), FL (length at hips),
OB (abdominal circumference), LZR (fronto-occipital head size),
and TVP (cervical thickness) is available from 11 weeks of
gestation and is performed at the touch of a button –
for better repeatability and reproducibility of results.

• SC5-1U is a probe intended for fetal and abdominal studies,
as well as for studies of the musculoskeletal system and
peripheral vessels.

The sensor supports THI, Smart3D, iScape, Color M, Fusion Imaging
and works
• L14-5WU is a linear probe intended for examinations of
the abdominal cavity, small organs, the musculoskeletal system,
superficial vessels, and in pediatrics.

The sensor supports THI, Smart3D, iScape, and biopsy.
• The L11-3U is a linear probe designed for studies of the
abdominal cavity, small organs, the musculoskeletal system,
superficial vessels, and pediatrics.

The sensor supports THI, Smart3D, iScape, biopsy, as well as
elastography of small organs and V-Flow of peripheral vessels.
• The V11-3HU is a probe designed for fetal, transrectal, transvaginal,
and superficial vascular examinations, including urology.

The sensor supports THI, Smart3D, iScape, iScape, Color M,
and biopsy.
DOM / 2016
