Minimax ME25
Ref :
2721719-15-MT
Condition :
Used
Manufacturer :
Minimax
Model :
ME25
Year(s) :
2016
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

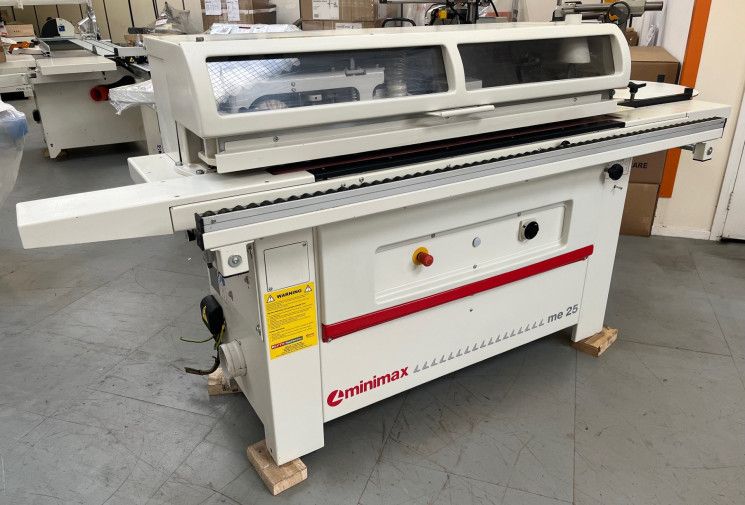

Used Automatic Edge Bander with Glue Pot
Glue Pot
End Cutting Saw Unit
Top and Bottom Trimming Unit
Edge Scraping Unit
Brushing Unit
Technical features:
- worktable dimensions [mm] 2600 x 530
- worktable height [mm] 904
- thickness of rolled edges [mm] 0,4 ÷ 3
- thickness of edges in strips [mm] up to 5
- min. ÷ max. panel height [mm] 12 ÷ 50
- min. ÷ max. panel height using edge scraping unit [mm] 16 ÷ 50
- min. panel length/width with rolled edges [mm] 190/65
- min. panel length cut only on the front [mm] 120
- feed speed [m/min] 7
- feed motor power (S1) [kW] 0,55
- pneumatic operating pressure [bar] 6,5
- exhaust outlet diameter [mm] 120
- operating temperature [°C] 20 ÷ 190
