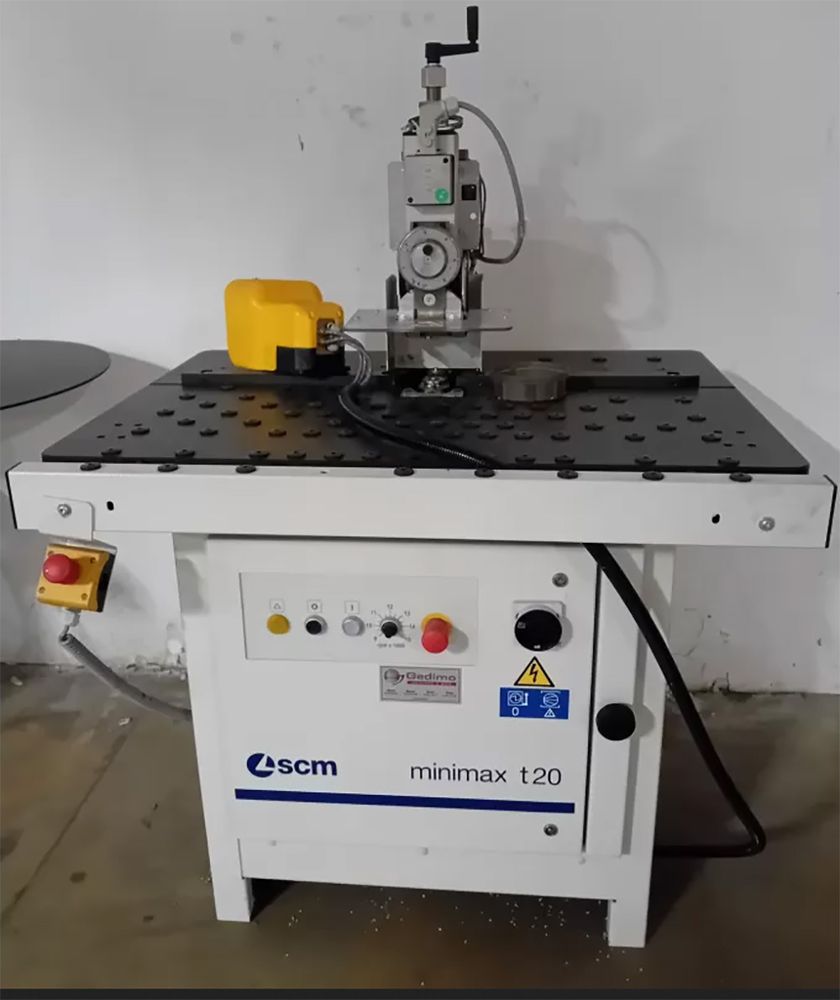

Minimax T20 DOUBLE EDGE MILL / EDGE MILL

FEATURES :
- Panel thickness 14 to 80 mm
- Maximum thickness of the applied edge banding: 4 mm
- Minimum panel width 100 mm
- Minimum panel length 200 mm
- Curved edge: minimum inner radius 25 mm
- Installed power 1.5 kW
- Variable rotation speed of cutters: 9,000 to 15,000 rpm
- Machine dimensions: 1000 x 800 x 1400 mm
- Extraction hoods to keep the machining table clean 2x Ø80 mm

Outcrop group :
- Two 0.55 kW operating motors with support carriages for sliding on ground guides
- Manual device for the vertical opening of the two motors, which facilitates the insertion of curved panels into the machine.
- Horizontal adjustments of the upper motor for flush trimming of panels with beveled edges
- Vertical adjustment of the upper motor to adjust the position according to the panel thickness
- Variator with electronic brake

Copiers :
- Vertical copiers, interchangeable anti-friction (with bearings), for the best use of the machine.
- Quick and easy tool adjustment, thanks to swivel rings with decimal indicator
- Kit of interchangeable swiveling front copiers with hardened, ground and chromed steel contact surfaces.
(R2 or R3 or chamfered or straight or sloping edge).
