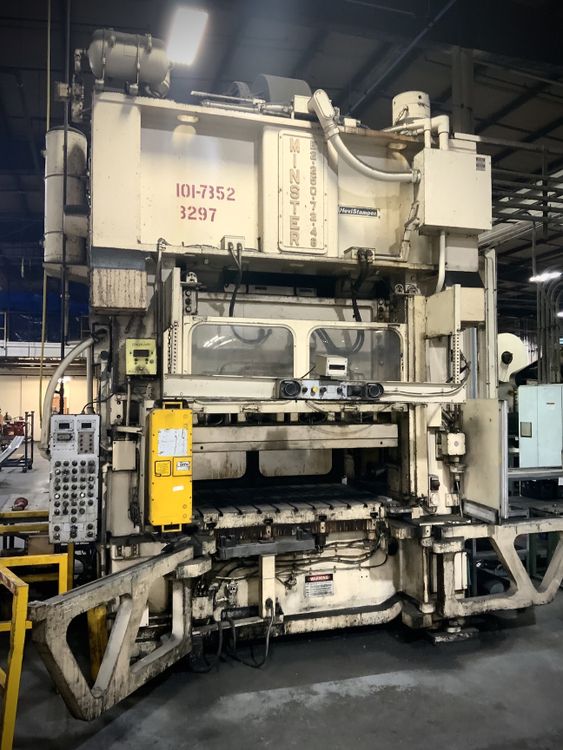

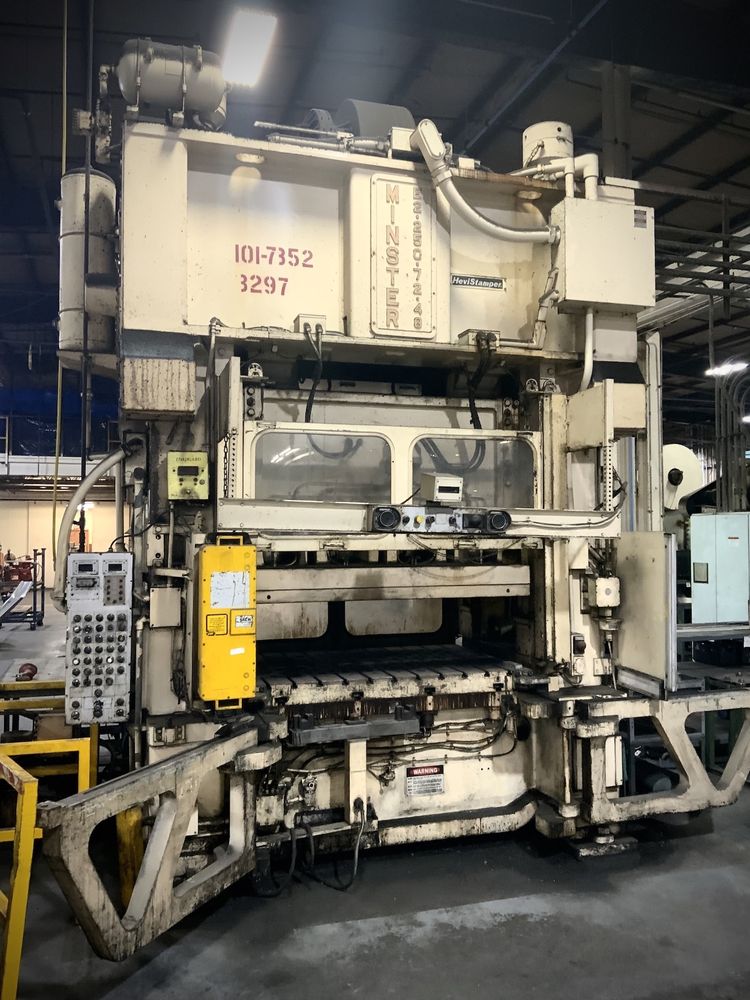

Minster E2-250-72-48 250 ton

Press capacity 250 ton
Stroke 8″
Shut height to bed 21″
Bed area 72″ RL x 48″ FB
Slide adjustment 6″ motorized
Slide area 72″ RL x 48″ FB
Slide plate 3″ H x 72″ RL x 48″ FB
Bolster plate 6″ H x 72″ RL x 48″ FB (T-slotted)
Press speed 40–80 SPM
Distance between uprights 74″
Window size 28″ W x 14″ H
Floor to bed height 32″
Clutch Minster air clutch/brake combination
Drive motor 40 HP, 1750 RPM, 480V, 3 phase, 60 Hz, eddy current drive
Machine dimensions 195″ H x 82″ RL x 72″ FB
Machine weight 92,000 lbs
Tie rod construction
Single geared twin drive
Heavy-duty uprights for rigidity
Eight-point gibbing for precision slide guiding
Heavy-duty slide and connections
Cast iron frame
Dual air counterbalances
Removable bed arms for quick die change
Floor-standing design
