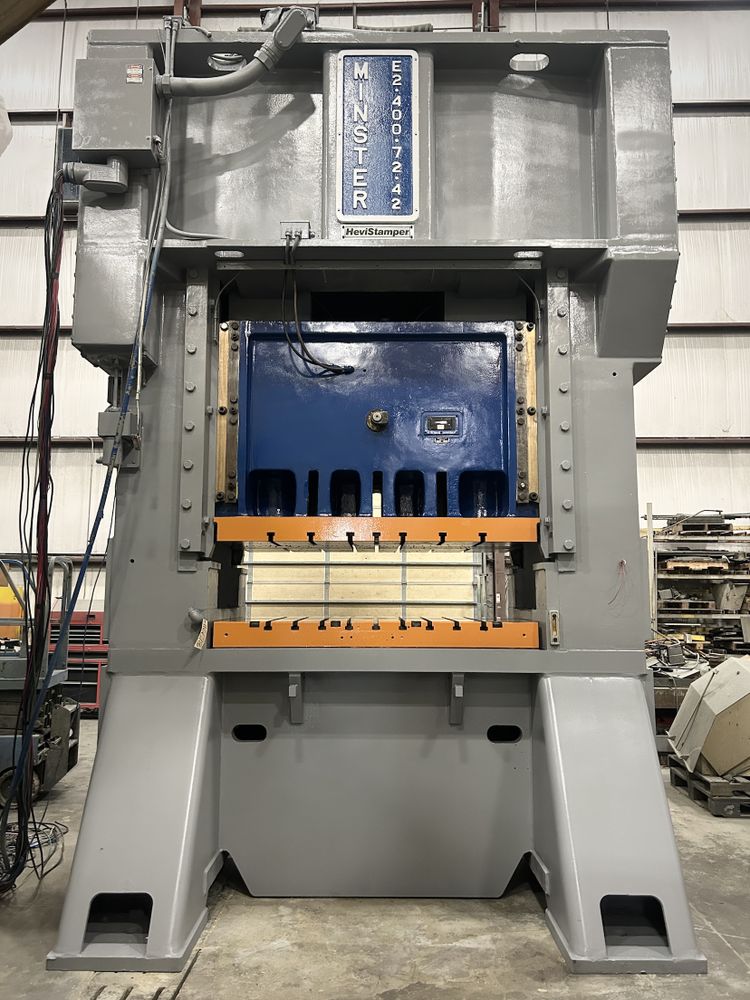

Minster E2-400-72-42 400 Tons

Press Force: 400 Tons
Stroke: 6 in
Shut Height to Bed: 26 in SDAU
Speed: 0 - 120 SPM
Ram Adjustment: 6 in Motorized
Bed Area: 72 × 42 in
Slide Area: 74 × 42 in
Window Size: 26 × 20 in
Bolster Plate Size: 72 × 42 × 6 in
Distance Between Gibs: 74 in
Floor to Bed Height: 55 in
Air Clutch and Brake Assembly
Press Controls: Cieco 1100R6 Resolver Based
Electric Motor: 75 HP
Motor Speed: 1755 rpm
Voltage: 240/480V
Air Counterbalances
Auto Oil Lubrication System
Ram Squared and Gibs Machined Flat
New Pneumatic System
Bolster Plate Machined Flat
Foot Pads
6 Month Major Parts Warranty
Approx. Dimensions: 162 × 96 × 204 in
Approx. Weight: 104000 lbs
