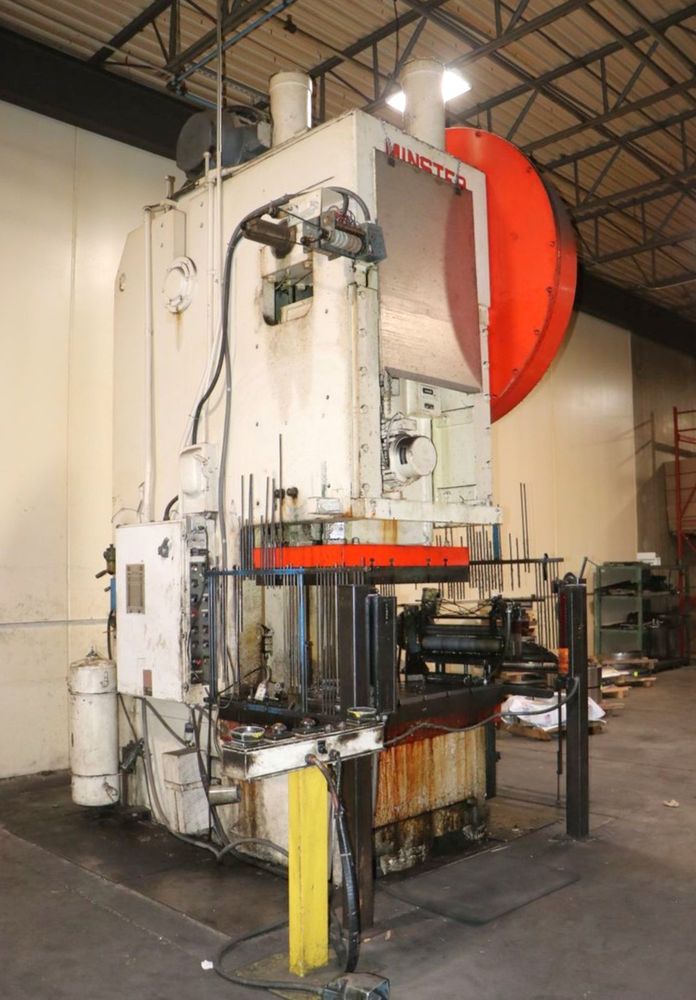

Minster G1-200 Press 200 Ton

200 ton
10″ stroke
25″ max shut height to bed
58″ x 34″ bed area (right to left x front to back)
45 SPM speed (approx.)
6″ motorized slide adjustment
41″ x 28″ slide area (right to left x front to back, T-slotted)
5″ x 58″ x 34″ bolster plate (height x right to left x front to back, T-slotted)
29.5″ distance between uprights
38″ distance floor to bed
Minster air clutch / brake combination
Approx. 20 HP, 1750 RPM, 480V-3-60 motor & Link SS-501 press control
Heavy one-piece fabricated steel frame
Forged alloy steel crankshaft
Nickel bronze bushings
High tensile cast iron box type slide
Minster recirculating oil system
Dual air counterbalances
Floor standing
