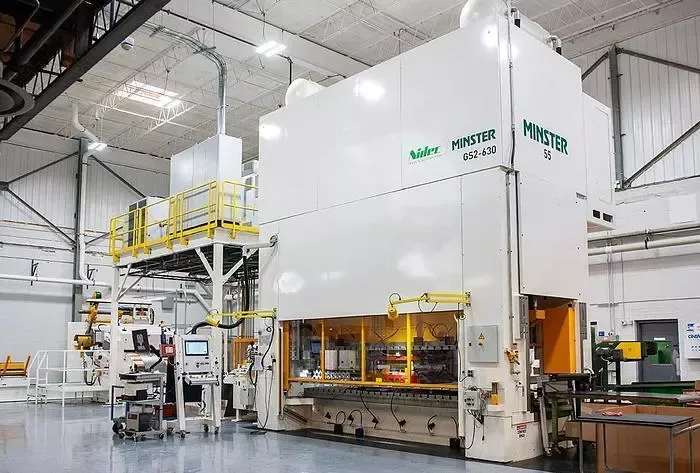

Minster GS2-630-425x150 710 ton @ 0.24" off bottom

MINSTER GS2-630-425x150
2021

Capacity: 710 ton @ 0.24" off bottom
Energy: 486 in-tons @ 40 spm
Bolster area: 167" left-right x 59" front-back
Bolster plate thickness: 7.5"
Slide area: 167" left-right x 59" front-back
Opening in bed: 145.7" left-right x 25.6" front-back (ribs front-back)
Stroke: 15.7"
Adjustment: 19.7"
Shut height: 31.5"
Min speed: 55 spm
Max speed: 105 spm
Max speed continuous rating: 55 spm
Max speed pendulum 150mm: 85 spm
Max speed pendulum 125mm: 90 spm
Max speed pendulum 100mm: 100 spm
Max speed pendulum 80mm: 105 spm
Nidec / CHS servo coil feed line included
Uncoiler model: R20048-PO with coil car
Powered straightener model: PS-350-7-48
Threading tables model: DETT-48
Servo roll feeder model: MX4548
Max coil weight: 20,000 lb
Max coil width: 48"
Max stock thickness @ 48" wide @ 50,000 psi: 0.110"
Max stock thickness @ 36" wide @ 50,000 psi: 0.156"
Max stock thickness @ 30" wide @ 50,000 psi: 0.187"
Max stock thickness @ 24" wide @ 50,000 psi: 0.200"
Max stock thickness @ 18" wide @ 50,000 psi: 0.220"
Max stock thickness @ 12" wide @ 50,000 psi: 0.250"
Min stock thickness @ 48" wide @ 50,000 psi: 0.018"
Mandrel expansion range: 19.5"–24.5"
Payout speed range in feet per minute: 0 - 100
Coil car with narrow coil keepers
Reel with hold down and edge guides
Straightener with peeler
