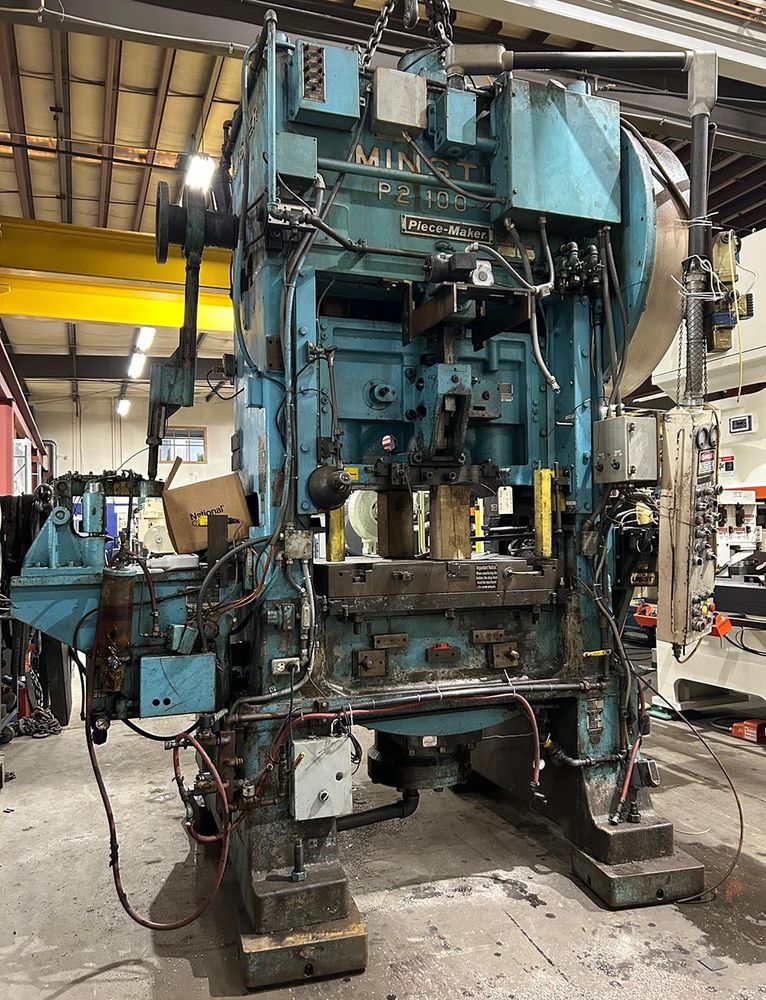

Minster P2-100-42 100 ton

Press force: 100 ton
Stroke: 5"
Speed: 40 – 80 SPM
Slide adjustment: 4"
Shut height: 17"
Bed area: 42" × 31"
Slide area: 40" × 18"
Side window width: 16"
Motor power: 20 HP
Electrical: 230/480 V / 60 Hz / 3 phase
Machine weight: approx. 33000 lbs
Machine dimensions: 103" × 80" × 151"
Air clutch and brake
Recirculating lubrication system
Rebuilt lubrication system
Dual air counterbalances
Pneumatic ram adjustment
Variable speed motor drive
Press control: Wintriss Smart Pac Pro
Resolver-based control
Die protection
Programmable limit switch
Tonnage monitor
Floor mounted operator console
Eight point bronze gibbing
Tie rod construction
T-slotted bolster plate: 5"
Vibro Dynamics press mounts: 4 units
