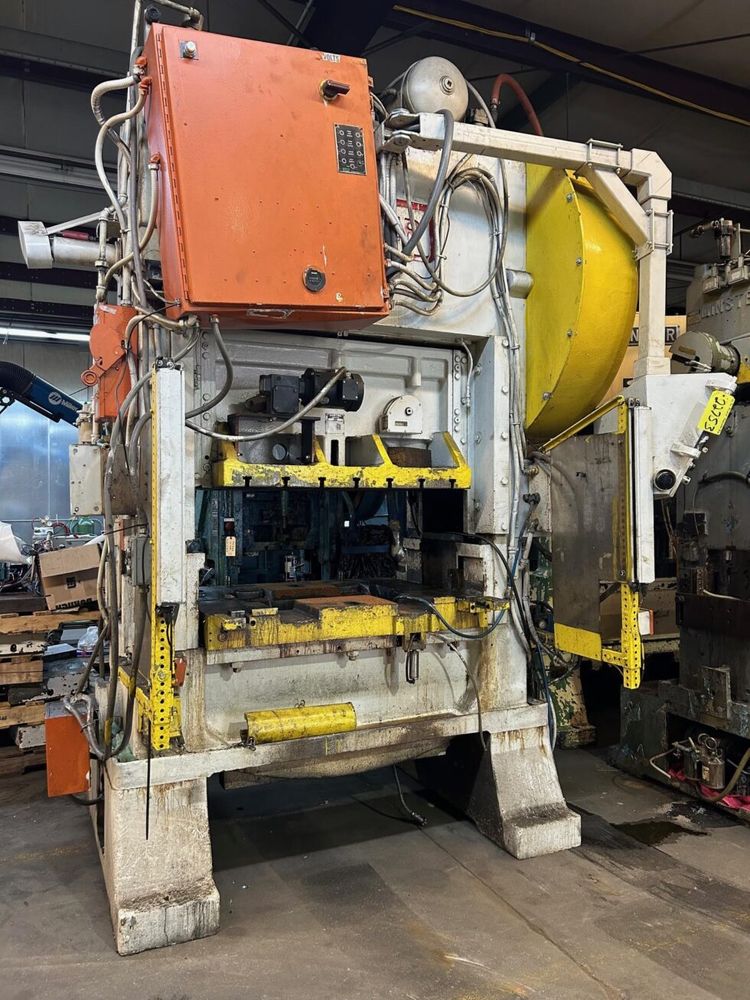

Minster P2-100-48 (SSDC PRESS) 100 ton

Tonnage 100 ton
Stroke 4 in
Speed (variable) 100–200 SPM
Slide adjustment 4 in
Shut height (S.D.A.U.) 20 in
Bed area 48 in L-R × 31 in F-B
Slide area 48 in L-R × 18.5 in F-B
Side window width 16 in
Motor 15 HP
Electrical 230/480 V / 60 Hz / 3 phase
Weight approx. 26,000 lb
Dimensions 103 in L × 80 in W × 151 in H

Air clutch and brake
Rebuilt lubrication system
Recirculating lubrication system
Dual air counterbalances
Wintriss Resolver-based press control (Smart Pac Pro)
Die protection system
Programmable limit switch
Tonnage monitor
Floor-mounted operator console
Variable speed motor drive
Eight-point bronze gibbing
Tie rod construction
Shut height indicator
T-slotted ram
5 in T-slotted bolster plate (center cutout)
(4) isolation mounts
