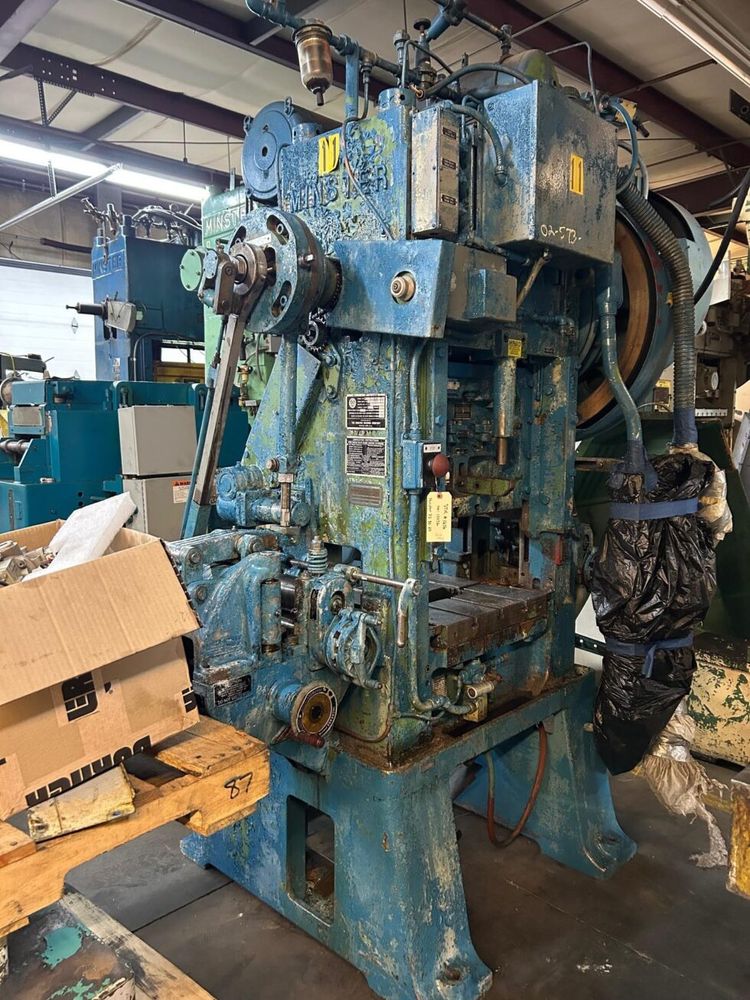

Minster P2-30-20 (SSDC PRESS) 30 ton

Tonnage 30 ton
Stroke 2 in
Speed (variable) 0–350 SPM
Slide adjustment 2 in
Shut height (S.D.A.U.) 11 in
Bed area 20 in L-R × 19 in F-B
Slide area 20 in L-R × 19 in F-B
Side window width 7.5 in
Motor 10 HP
Electrical 230/460 V / 60 Hz / 3 phase
Weight approx. 8,000 lb
Dimensions 58 in L × 46 in W × 96 in H

Air clutch and brake
Dual air counterbalances
Automatic recirculating lubrication system
Eight-point gibbing
T-slotted ram
Tie rod construction
Eddy current motor
2 in T-slotted bolster
(4) isolation mounts
