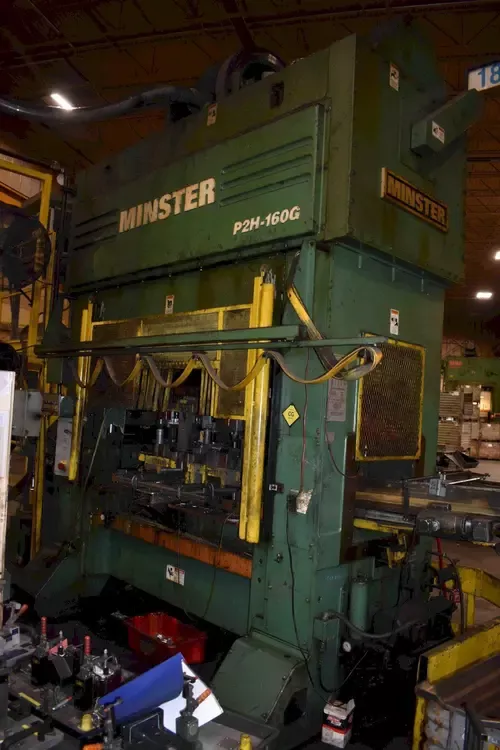

Minster P2H-160G 180 ton

Press force: 180 ton
Stroke length: 7.87 in
Shut height: 19.68 in
Slide adjustment: 5.91 in
Strokes per minute min: 0
Strokes per minute max: 120
Variable speed: Yes
Crank type: Double
Bolster area left-right: 74.8 in
Bolster area front-back: 33.5 in
Bed width: 80 in
Bed length: 145 in
Window width: 24.80 in
Floor to top of bolster: 46.40 in
Opening in bed: 63 x 9.80 in
Bolster thickness: 4.92 in
Main motor power: 40 HP
Main motor speed: 1765 RPM
Power supply voltage: 480 V
Power supply phase: 3
Power supply frequency: 60 Hz
Overall length: 145 in
Overall width: 80 in
Overall height: 186 in
Machine weight: 77000 lb

Features / Equipment:
Press control with production management control
T-slotted bolster
Variable speed drive
Integral press shock mounts
