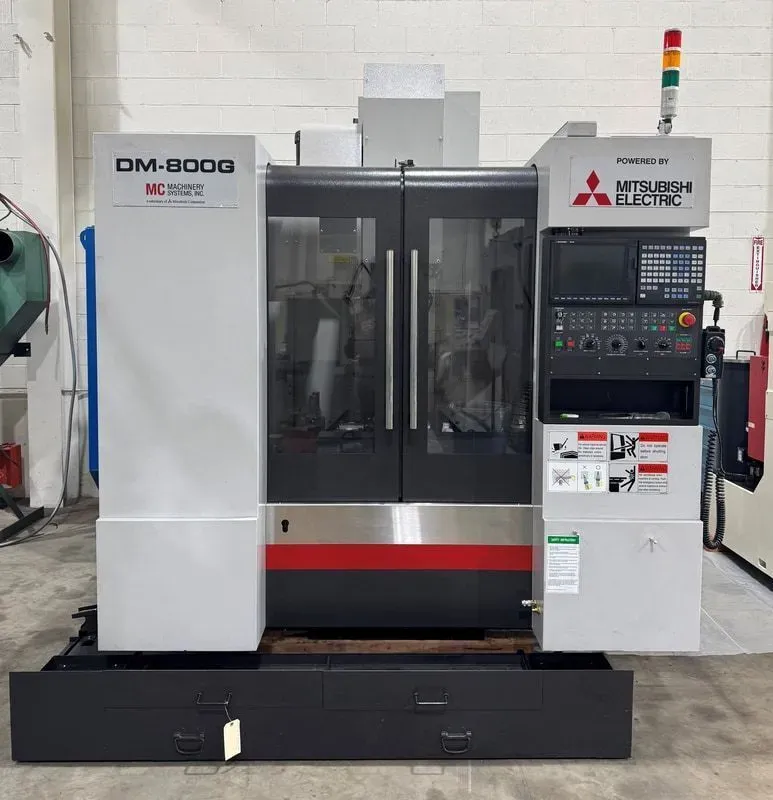

Mitsubishi DM-800G Graphite Machining Center 3 Axis

X Axis Travel: 31.5"
Y Axis Travel: 19.7"
Z Axis Travel: 21.3"

Table Size: 35.8" x 19.6"
Table Capacity: 1,100 lbs
Table to Spindle Nose Distance: 5.9" – 27.2"

Spindle Speed: 20,000 RPM
Spindle Motor: 10 HP

Feed Rate: 0.04 – 787 IPM
Rapid Traverse (X/Y/Z): 1,417 IPM

Tool Changer Capacity: 24
Tool Taper: HSK-E40
Max Tool Diameter: 3.1" (full) / 3.9" (adjacent empty)
Max Tool Length: 7.9"
Max Tool Weight: 11 lbs

Coolant Tank Capacity: 77 Gal
Electrics: 220V / 60Hz
Power Requirements: 15 KVA

Dimensions: 76.2" x 82.6" x 100.7"
Machine Weight: 11,700 lbs

Equipped With:
Mitsubishi M700 CNC Control with Pendant
Factory Installed Graphite Machining Package
Donaldson Torit DFO2-2 Dust Collector
Coolant Filtration System with Disc Type Oil Separator (Brand New / Never Used)
Habor HBO-400PTSB3 Oil Chiller (Spindle)
Chip Auger with Bucket
Air Blow Off Gun
Work Lights
