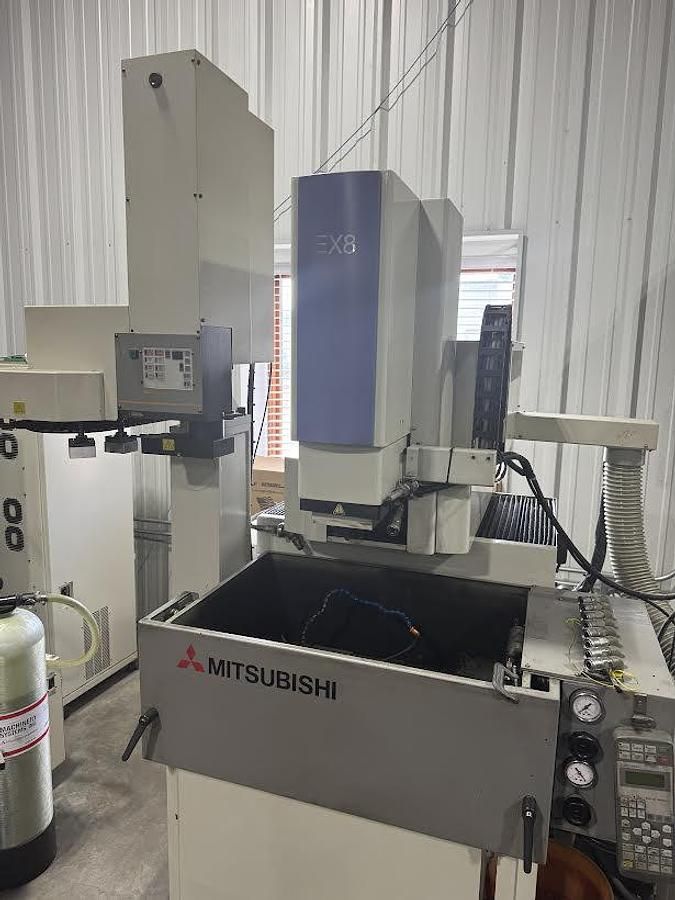

Mitsubishi EX8

X-Axis Travel: 11.81"
Y-Axis Travel: 9.84"
Z-Axis Travel: 9.84"
C-Axis (System 3R Combi)
Control: 32-Bit Fuzzy Logic
FP60E Power Supply
8 Position Programmable Flushing
Table Size: 21.65" x 13.77"
Worktank Size: 24.08" x 16.53" x 15.9"
Max Workpiece Size: 35.43" x 23.62" x 11.81"
Max Workpiece Weight: 1,200 lbs
Max Current: 60 Avg Amps / 80 Peak Amps
Electrode Positions: 16
Max Electrode Weight: 55 lbs
Dielectric Oil Capacity: 37 gal
16 Position Automatic Electrode Changer
Dielectric Filtration System
Chiller
Electrical Requirements: 220-220V / 3 Phase / 60 Hz
Machine Dimensions: 90" x 88" x 80"
Machine Weight: 2,640 lbs
