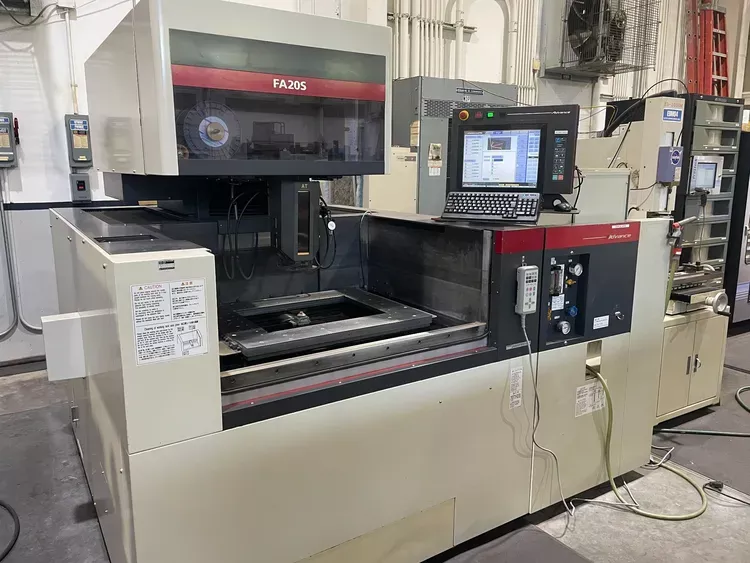

Mitsubishi FA-20S

X-Axis Travel: 13.8"
Y-Axis Travel: 19.7"
Z-Axis Travel: 11.8"
U-Axis Travel: +/- 3.0"
V-Axis Travel: +/- 3.0"
Control: Mitsubishi M750 CNC
Submerged machining capability
Automatic wire threader
Machining Stroke Max Workpiece Size: 41.3" x 31.5" x 11.6"
Table Size: 30.7" x 24.8"
Tank Dimensions: 42" x 32" x 12"
Taper Capacity: +/- 30 Degrees
Taper Angle at Thickness: 15° @ 10.5"
Maximum Workpiece Weight: 3,300 lb
Maximum Drive Unit / Resolution: 0.00001 mm
Min Hole Diameter: 0.02"
Wire Diameter Capability: 0.004" - 0.012"
Wire Guides Included: 0.008"
Max Wire Spool Size: 22 lb
Dielectric Water Capacity: 187 Gal
Electrical Requirements: 200-220V/3Ph/60Hz
Machine System Footprint Dimensions: 102" L x 109" W x 85" H
Machine Tool Dimensions: 80" x 104" x 85" H
Machine System Weight: 9,516 lb
Ethernet, USB, RS232
4-Sided Zeroline Table
On-Board CAM Programming
Automatic Fluid Level Control
Auto-Lock Vertical Tank Door Mechanism
Fine-Grain Dianite Casting Material
Moving Column Design
DC-Servo Closed Loop Torque Control Wire Tensioning System
Direct Drive 32mm Ball Screws
Linear Motion Guide Ways
Digital 500 Watt AC Servo Drive System
All-Axes Absolute Control System
Linear Glass Scales (X & Y)
Fine Resolution Encoder Feedback (U & V)
Standard Long Travel 3-Inch U-V Taper Unit
16 Step Programmable Flushing Control
Remote Hand Pendant
Wire Chopper
Filtration System
Electric Chiller
All Available System Disks, Manuals and Accessories
