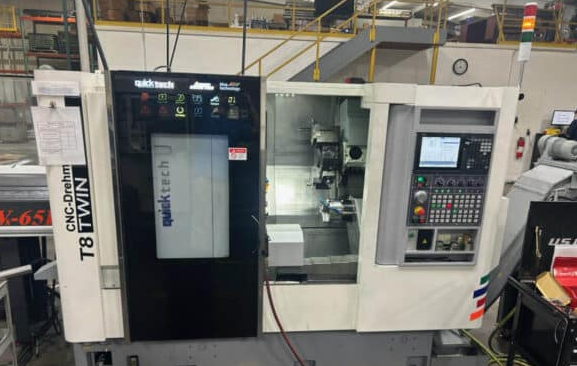

Mitsubishi M80A. 4000 RPM QuickTECH T8 Twin-Y 8 Axis

Maximum cross travel (turret X1 axis) 6.3”
Maximum off center travel (turret Y1 axis) 3.15” (+/- 1.57”)
Maximum longitudinal travel (turret Z1 axis) 14.76”
Maximum cross travel (X2 axis) 18.5”
Maximum vertical travel (Y2 axis) 14.76”
Maximum longitudinal travel (Z2 axis) 13.2”
Maximum B axis travel (B1, B2 axes) 360 degrees / .001 degree resolution
Mitsubishi M80A Controller
Chip Conveyor
Parts Catcher
Y-Axis
Sub Spindle
Milling
Maximum bar working capacity 2.56” (65mm)
Swing over cross slide 11.8”
Spindle speed range (std.) 4000 RPM
Spindle motor 20HP
Spindle nose A2-6
Hole through draw tube 2.6” (66mm)
C axis increment .001 degrees
Maximum bar working capacity (Sub spindle) 1.65” (42mm)
Maximum turning length (Sub spindle) 13.2”
Collet Chuck Type DIN KK5-173E/42B (42mm)
Spindle nose (Sub spindle) A2-5
Hole through draw tube (Sub spindle) 1.26” (32mm)
Spindle speed range (Sub spindle) 4000 RPM
Spindle motor (Sub spindle) 7.5HP Integral motor
C axis increment (Sub spindle) .001 degrees
Live tool spindle motor 5HP
Live tool spindle speed 4000
Rapid traverse rate 1181”/min
Ballscrew diameter x pitch 1.25” (32mm) x 10mm pitch
Tooling type BMT-55 servo turret
Number of tools 12
Number of live tool stations 12
Square shank size 1” (25mm)
Boring bar capacity 1.25” (25mm)
Turret index time .3 secs / station
Turret index time .5 secs 180 degrees
Machine Weight 13,420 LBS
Floor Space with chip conveyor 132″ X 65″ x 69″
