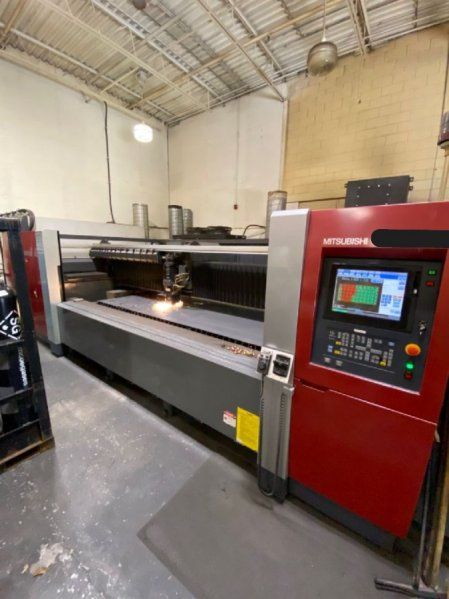

Mitsubishi ML-3015 EX CNC CONTROL

Maximum workpiece size: 120.1″ × 60.0″
Table pass height: 34.6″
Pallet capacity: 1540 lbs
X-axis stroke: 122″
Y-axis stroke: 61″
Z-axis stroke: 5.9″
Rapid travel speed (X,Y): 3940/5550 in/min simultaneous
Maximum processing feedrate: 1970 in/min
Positioning precision (X,Y): 0.0019/20
Positioning precision (Z): 0.0039/4
Drive motor type: Intelligent AC servo
Machine structure: X/Y Precision Rack & Pinion – Z = Precision Ball Screw
Travel drive method: X-Y-Z simultaneous 3 axes (Z-axis height control also possible)
Automatic up/down door
Pallet changer provided
CPU: 64-bit
Display screen: 15″ TFT colour LCD touch screen
Hard disk: 20.0 GB
Generator output control: Output power, frequency, duty
Generator operation control: Beam on/off, laser gas charge, etc.
Drive system: X, Y, Z simultaneous control
Position detection system: Encoder
Minimum command input: 0.001 mm / 0.001″
Program input system: USB computer link, Ethernet LAN
CO2 Laser model: 45CF-R
Excitation method: 3-axis cross flow, silent discharge
Maximum output power: 4500 watts
Rated output power: 4500 watts
Power stability: ±1% of rated power
Beam mode: Low-order
Beam outer diameter: 1.02 mm
Beam divergence (total angle): approx. 3.5 mrad or less
Laser gas composition (CO₂:CO:N₂:He): 8:4:60:28
Laser gas consumption rate: 24 litres/hour during continuous oscillation
Wavelength: 10.6 microns
Frequency setting range: 10-3000 Hz
Duty range: 0-100% adjustable
Output power adjustable range: 0-100%
Equipped with chiller
Equipped with dust collector
