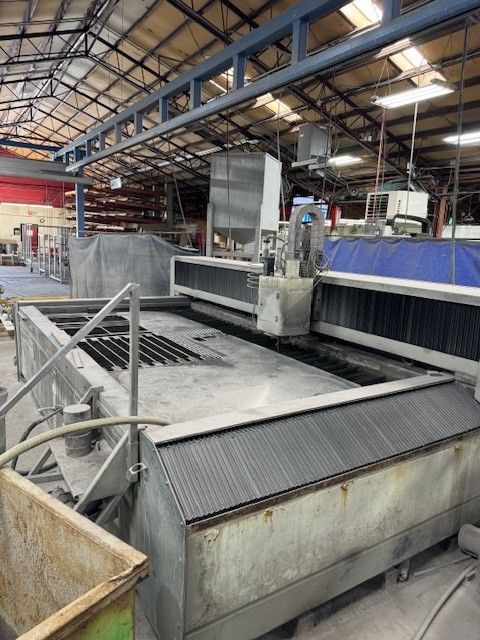

Mitsubishi MW-X4-612 Mitsubishi M730 CNC Controller

X-Axis Stroke 144"
Y-Axis Stroke 72"
Z-Axis 8"

Max Workpiece Dimension 146" x 74" x 8"
Submerged Machining Depth 3"
Work Tank Access Open
Max Workpiece Weight 300 lbs/ft.
Working Table Height 31.692"
Machine Structure Bridge/Portal Design
MonoBlock with Tubular Steel
Machine Weight w/o Tank 9,038.95 lbs
Tank Weight 7,187 lbs
Tank Volume 1,611 gal
Drive Motor Type HF 104S-A48
Rapid Travel Speed 800"/min
Intensifier Pump Pro-60
Number of Intensifiers 1
Design Pressure 90,000 psi
Motor Power 60 HP
Streamline Pro-60
Taper Compensating Head
Mitsubishi M730 CNC Controller
(2) Seats of Metamation Water CAD Software
True Shape
Garnet Removal System
Submerged Cutting Bladder System
Adjustable Abrasive Regulator
670 lb Pressurized Abrasive Hopper
New Diamond Cutting Head
New Galvanized Slate Table
2,200 lb of Garnet Abrasive
(3) Focus Tubes
Factory Installation
