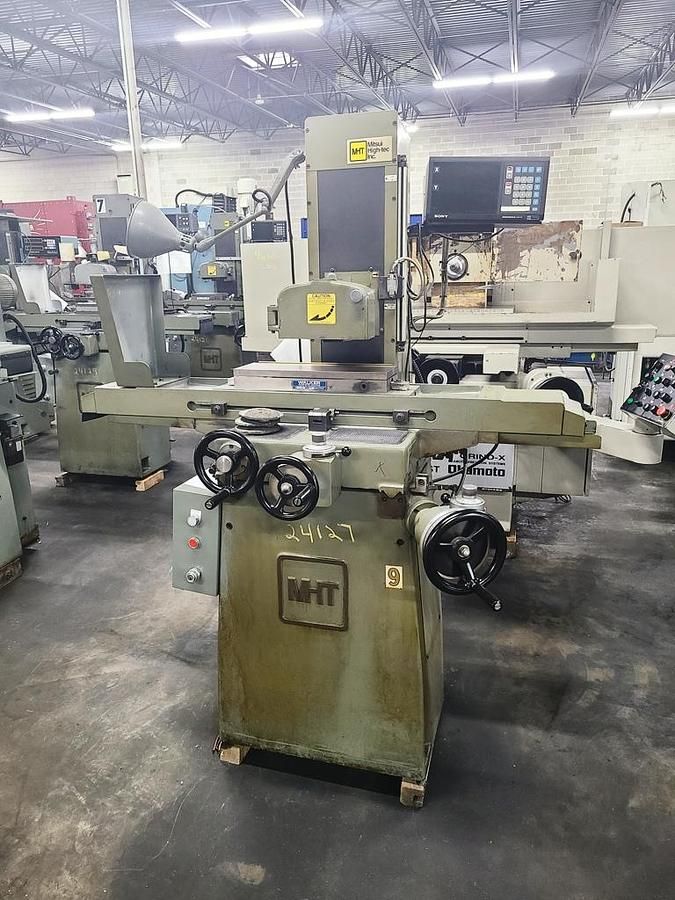

Mitsui MSG-250MH

Dimension of Working Surface: 19" x 6-1/4"
Maximum Grinding Length and Width: 19" x 7"
Maximum Height from Table Surface to Grinding Wheel Spindle Center: 15"
Maximum Longitudinal Movement of Table: 20"
Maximum Cross Movement of Table: 8"
Table Movement per Hand Wheel Revolution (Y Axis): 4"
Hand Wheel for Vertical Feed Per Revolution: .05"
Hand Wheel for Vertical Feed Per Division: .0001"
Hand Wheel for Cross Feed Per Revolution: .1"
Hand Wheel for Cross Feed Per Division: .001"
Height from Floor to Table Surface: 42"
Wheel Size: 7" Diameter x 1/2" Width x 1-1/4" Bore
Fine Pole Permanent Magnetic Chuck
Sony Digital Read Out
Fine Feed on Y Axis: .00005" Increments
Fine Feed on Z Axis: .00005" Increments
One Shot Lube
1 KW Main Motor
Wired for 3 Phase, 60 Cycle, 220 Volts
Overall Size: 48" LR x 48" FB x 72" High
Weight: 1,300 Lbs
