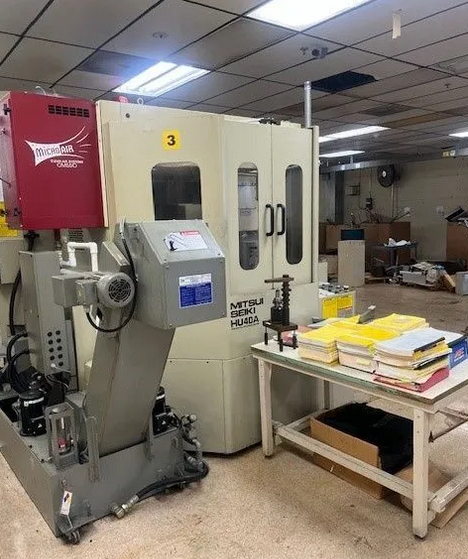

Mitsui Seiki HU40A 5 Axis

X-Axis Travel: 560 mm
Y-Axis Travel: 560 mm
Z-Axis Travel: 560 mm
B-Axis: 360° indexing
5 Axis
Pallet size: 400 x 400 mm
Number of pallets: 2
Max workpiece diameter: 600 mm
Max workpiece height: 800 mm
Max part weight: 400 kg
Control: Fanuc 15i / 15i-150i CNC
Fanuc CNC Control
Full 5 axis machining
All available manuals
Spindle taper: BT40
Spindle speed: 12,000 RPM
Power: 30 kW
Tool capacity: 120 ATC
Max tool diameter: 150 mm
Max tool length: 320 mm
Max tool weight: 8 kg
Machine dimensions: 4800 x 2500 x 2800 mm
Machine weight: 10,500 kg
