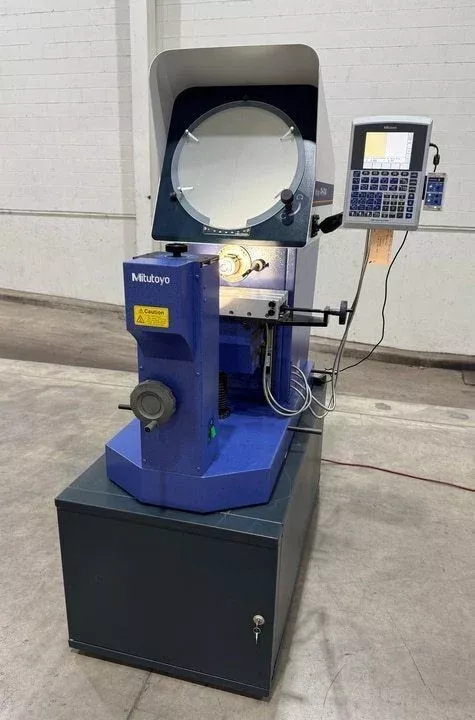

Mitutoyo 14″ PH-A14

14″ Mitutoyo PH-A14
New – 2020

Protractor Screen:
– Diameter…………14″
– Screen Rotation………………………………………..+/-360 Deg.
– Angle Display Vernier Reading Resolution…………2′
Magnification Accuracy:
– Contour Illumination…………+/- 0.1% or less
– Surface Illumination…………+/- 0.15% or less
XY Stage:
– Table Size…………16″ x 6″
– X-Axis Travel…………8″
– Y-Axis Travel…………4″
– Resolution…………0.00005″
– Workpiece Width – Maximum (Dependent on Lens)…………As Equipped – 9.25″
– Workpiece Mass – Maximum…………100 Lbs.
Electrics…………120V/60Hz
Machine Dimensions – Catalog…………24″(L-R) x 49″(F-B) x 46″(H)
Machine Weight – Catalog…………308 Lbs.

EQUIPPED WITH:
Quadra-Chek 200 2D Geometric processing unit
Opto-Eye edge detector
10X & 20X Projection lens sets
Build in linear scale
Fine ground glass protractor screen
Cross hair reference line
Halogen light source
Cabinet base
