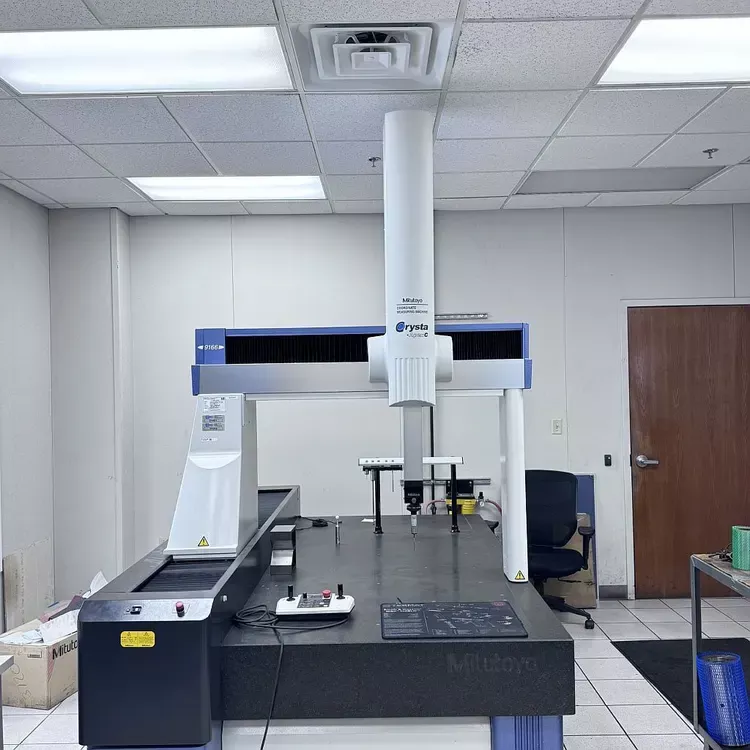

Mitutoyo Crysta-Apex C9166

X Travel: 35"
Y Travel: 63"
Z Travel: 24"
Control: Mitutoyo
Guide Method: Air bearings on each axis
Resolution: 0.0001 mm (0.1 μm)
Drive Speed CNC Mode: 8–300 mm/s
Drive Speed CNC Mode Max: 519 mm/s
J/S Mode High Speed: 0–80 mm/s
J/S Mode Low Speed: 0–3 mm/s
J/S Mode Fine Speed: 0.05 mm/s
Max Measuring Speed: 8 mm/s
Max Drive Acceleration Each Axis: 1,333 mm/s²
Max Combined Acceleration: 2,309 mm/s²
Workpiece Max Height: 800 mm
Workpiece Max Mass: 1,500 kg
Machine Mass Including Control Device and Platform: 2,868 kg
Air Supply Pressure: 0.4 MPa
Air Consumption Normal: 60 L/min
Air Consumption Source: 120 L/min
High-Accuracy CNC Coordinate Measuring Machine
Maximum Permissible Error E0,MPE: (1.7+3L/1000) μm
Calibration Valid Until: 2/28/2026
