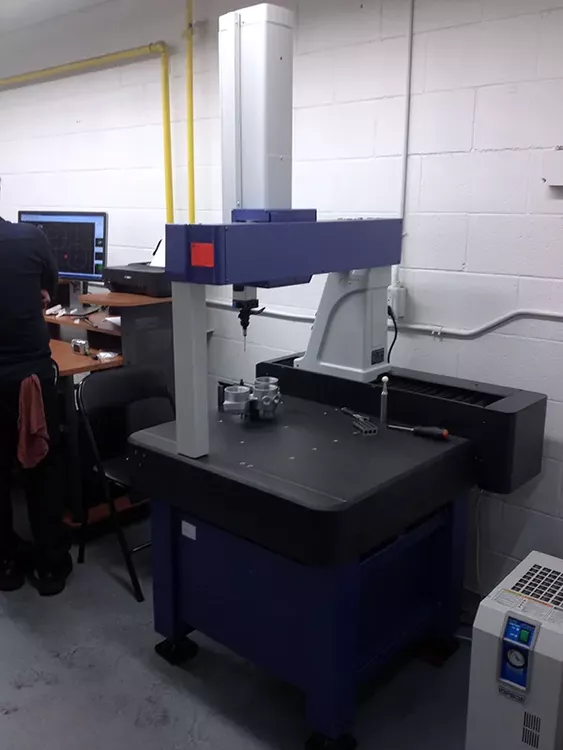

Mitutoyo CRYSTA PLUS M443

Ref : 2769994-3-CP

Condition : Used

Manufacturer : Mitutoyo

Model : CRYSTA PLUS M443

Year(s) : 2011

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

X Axis Travel: 15.75"
Y Axis Travel: 15.75"
Z Axis Travel: 11.81"
Resolution: 0.00002"
Measuring Table Material: Granite
Measuring Table Working Area: 25.12" x 45.67"
Measuring Table Dimensions: 330.7" x 51.97"
Maximum Workpiece Height: 18.9"
Maximum Workpiece Weight: 396 lbs
Air Pressure: 0.4 MPa (58 psi)
Air Consumption: 50 L/min (1.8 CFM)
Overall Dimensions: 38.62" x 41.22" x 77.44"
Machine Weight: 904 lbs

Granite measuring table
Air supply system
Coordinate measuring capability
