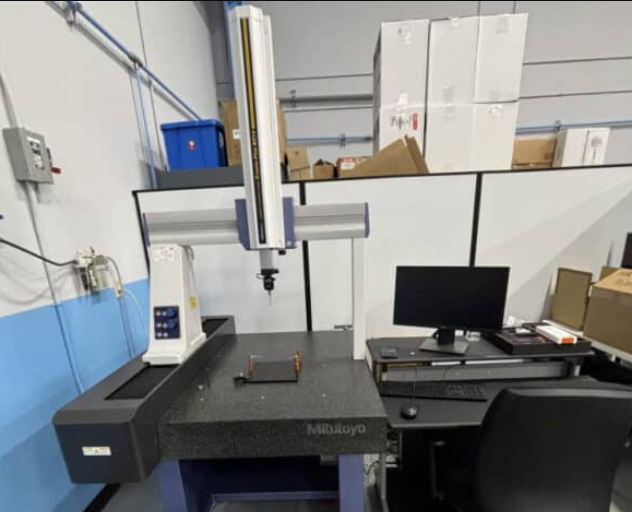

Mitutoyo CRYSTA-PLUS M574

X-Axis Measuring Range: 500 mm
Y-Axis Measuring Range: 700 mm
Z-Axis Measuring Range: 400 mm
Resolution: 0.0005 mm
Granite Measuring Table
Working Area: 638 × 1160 mm
Tapped Inserts: M8 × 1.25
Maximum Workpiece Height: 510 mm
Maximum Workpiece Weight: 180 kg
One-Touch Air Clamp
Touch Signal Disable Switch
Air Balanced Z-Axis Ram
Precision Air Bearings on All Axes
Glass Scale Linear Encoders
Temperature Compensation System
Integral Filter System
Pressure Regulator and Valve
Membrane Air Dryer
Ceramic Master Ball
Computer Operator Station
Mitutoyo MCOSMOS M1 V4.2 Software
Dell Precision T5810 Computer
Renishaw MH20i Probe System
Machine Dimensions: 1082 × 1458 × 2285 mm
Machine Weight: 575 kg
