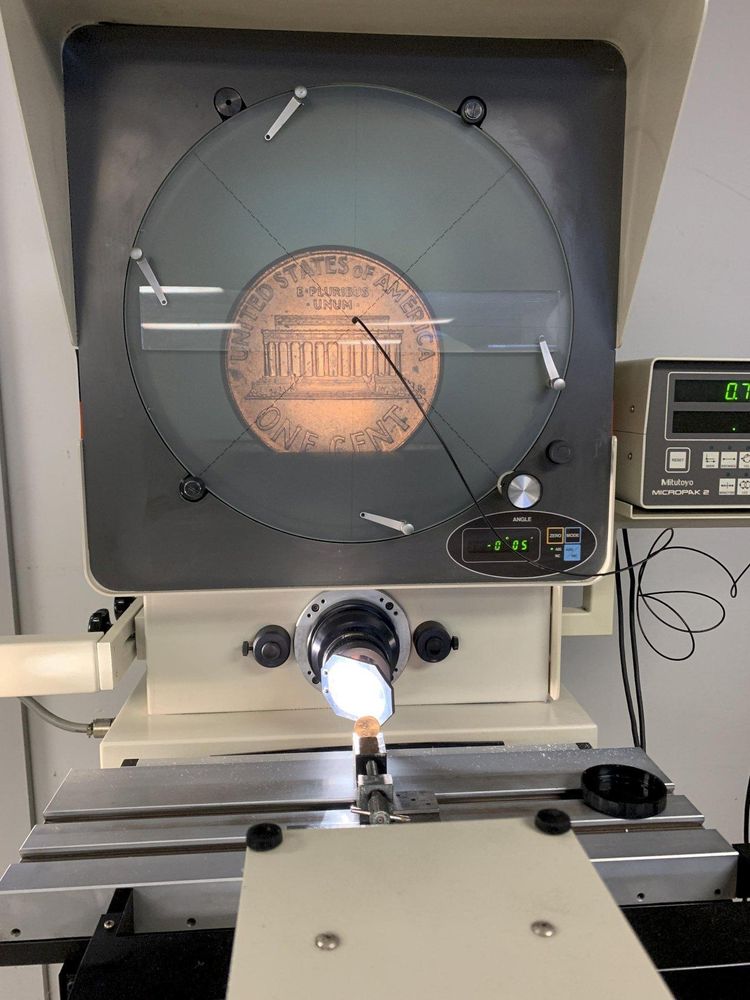

Mitutoyo PH-3500 Optical Comparator

Screen diameter: 14"
Table size: 17.7" x 5.7"
Horizontal travel: 10"
Vertical travel: 6"
Focus travel: 2"
Table swivel: +/- 10 degrees
Table load capacity: 100 lbs
Electrics: 1/60/110-120 V
Image type: Erect
Lens mount: Single
Dimensions: 52" LR (with DRO) x 45" FB x 46" H
Net weight: 330 lbs
Shipping weight: 700 lbs (including cabinet)

Features / Equipment:
Mitutoyo Micropak 2LA Computational Digital Readout
Opto-Eye Edge Sensing
Digital Angle Display
Tungsten Halogen Projection - 24 Volt, 150 Watt
Side Surface Attachment - 24 Volt, 150 Watt
(1) Lens - 10X (other lenses may be available to sub or purchase)
Cabinet base
Table centers
Manuals included
