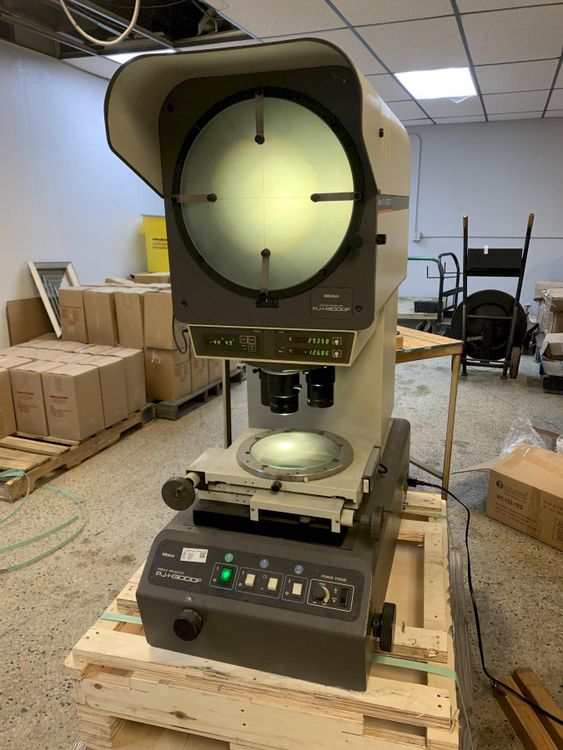

Mitutoyo PJ-H3000F

Screen effective diameter: 12"
Overall table size: 11.81" x 9.45"
Effective table glass insert diameter: 7"
XY measuring range: 4" x 2"
Focus travel: 4.13"
Max workpiece height: 4.1"
Chart rotation: 360°
Light sources: Halogen 24V, 150W
Image type: Erect
Display resolution: 0.0001"
Comparator dimensions: 23" LR x 33" FB x 42" H
Comparator weight approx: 415 lbs
Gross shipping weight approx: 700 lbs
Built-in digital readout
Built-in linear scales 0.0001" resolution
Digital angle display
Built-in rotary table
3-position lens turret
10x lens included
20x lens included
50x lens included
Power focus adjustment
Surface reflection
Visor
User's manual
