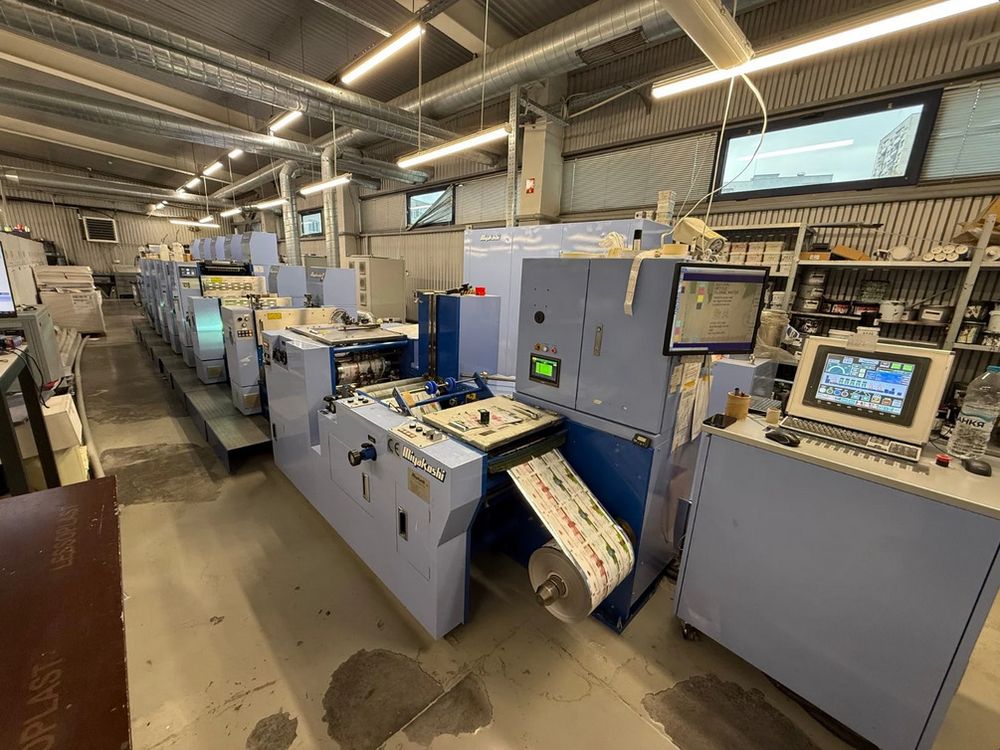

Miyakoshi MLP 13-C

Max. Paper Width: 350 mm
Max. Printing Width: 330 mm
Repeat Length: 127.0 - 355.6 mm
Max. Machine Speed: 71.1 m/minute
Substrate Gram.: 50 ~ 300 gsm

Full-Servo Semi-Rotary UV Offset Label Printing Machine
Configuration: Flexo unit + 5 Offset units + Flexo unit + Die-cutting unit
Roll to Roll only
Substrate weight: 50 – 300 g/sqm
Substrate Thickness: 70 – 300 microns

Equipped with:
1 x Unwind Unit
Maximum diameter unwind: 700 mm
Cantilever Shaft, Infeed Loop Box, Web Guide
1 x Semi-rotary Sleeve Pan Flexo Printing Unit
5-Form Roller (4 inks, 1 water), 4-Oscillating Roller
Miyakoshi Alcohol Dampening System
Alcohol cooling circulation unit
Cooling system for oscillating rollers
1 x Semi-rotary Chamber Flexo Printing Unit
1 x Semi-rotary Die-cutting Unit with Magnet Cylinder
1 x Process Unit including Pull & Loop Unit and Matrix Rewind
Maximum matrix rewind diameter: 500 mm
1 x Rewind Unit Cantilever Shaft
Maximum rewind diameter: 500 mm
Transformer, Electrical Cabinet, Connectors & Cables
1 x Spare Parts, Tools, Other Auxiliaries and Test Materials
1 x Techno-E System with Repeat Function

Accessories:
1 x Plate Bender
1 x Plate Puncher
7 x UV Dryer Stand (5 offset, 2 flexo)
1 x EP.C (Web Guide)
1 x Refrigerator for MK Dampener of 5 colors
5 x UV Dryer - 5 offset printing units
2 x UV Dryer - 2 flexo printing units
1 x Ink-key Remote Control System for 5 colors
1 x Registration Mark Monitor & Camera
1 x Web Cleaner (MK rotary brush type)
1 x 2nd Pass Printing Function
1 x Central Lubrication System with Oil Pan
5 x CNC Lateral Adjustment for Printing Unit
1 x Automatic Inking Roller Wash Up System (for 5 colors)
5 x Ink Agitator
1 x PPF Converter for CTP Data
2 x Tube Pump – flexo printing units
1 x Sliter Unit with 3 Blades (OS, Center, GS) without Vacuum Blower
