Miyano Fanuc 18i-TB CNC control 5000 rpm BNJ 42 SY 6 Axis

Ref : 2727910-3-MT

Condition : Used

Manufacturer : Miyano

Controller : Fanuc 18i-TB CNC control

Spindle Speed : 5000 rpm

Model : BNJ 42 SY

Nb Of Axis : 6 Axis

Year(s) : 2005

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

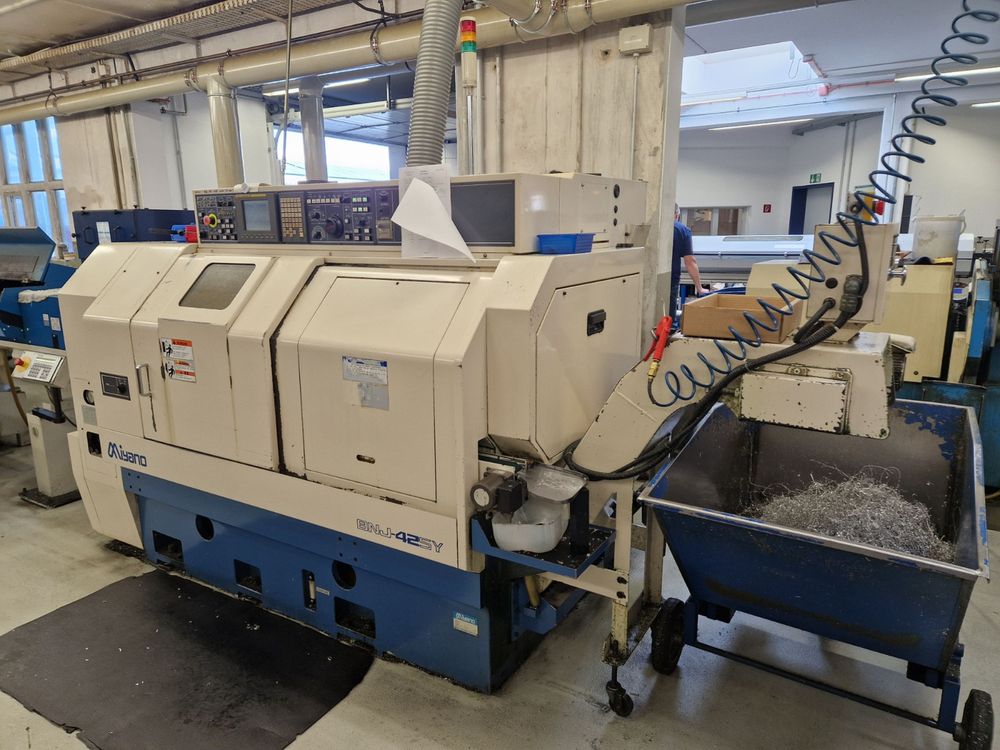

Miyano BNJ 42 SY
2005

Max turning diameter 165 mm
Fanuc 18i-TB CNC control
Max bar diameter 42 mm
Collet chuck device at main spindle
Collet chuck device at sub spindle
C-axis
Y-axis
12-position turret with driven tools
6-position turret
Bar loading device
Travel X1/X2 142/70 mm
Travel Z1/Z2 250/515 mm
Travel Y1 ±40 mm
Spindle speed 5000 rpm
Number of tool places 12 + 6
Rapid feed X 20 m/min
Rapid feed Z 20 m/min
Rapid feed Y 12 m/min
Weight approx. 5900 kg
