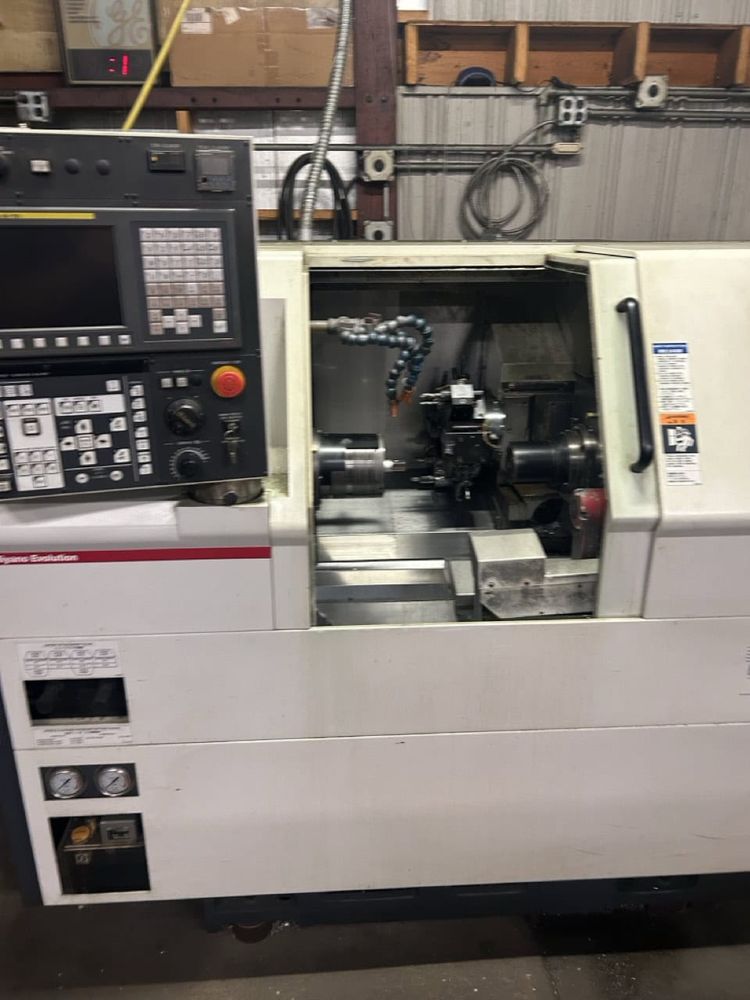

Miyano Fanuc Oi-TD control 6000 RPM BNA-42S 4 Axis

X axis travel 5.31 in
Z axis travel 9.25 in
B axis travel 12.20 in
C axis spindle 1 0.001°
C axis spindle 2 0.001°
Fanuc Oi-TD control
Live tooling
Sub spindle
Max machining diameter main spindle 1.65 in
Max machining diameter sub spindle 1.65 in
Max machining length 3.93 in
Inner diameter of draw tube main 1.69 in
Inner diameter of draw tube sub 1.18 in
Main spindle speed 6000 RPM
Sub spindle speed 5000 RPM
Rotary tool speed 5000 RPM
Max drilling diameter 0.39 in
Turret stations 8
Number of rotary tools max 8
Machine dimensions 84.65 in x 51 in x 65.40 in
Machine weight 6500 lb

Edge M-542 bar feeder
Chip conveyor
Parts catcher
