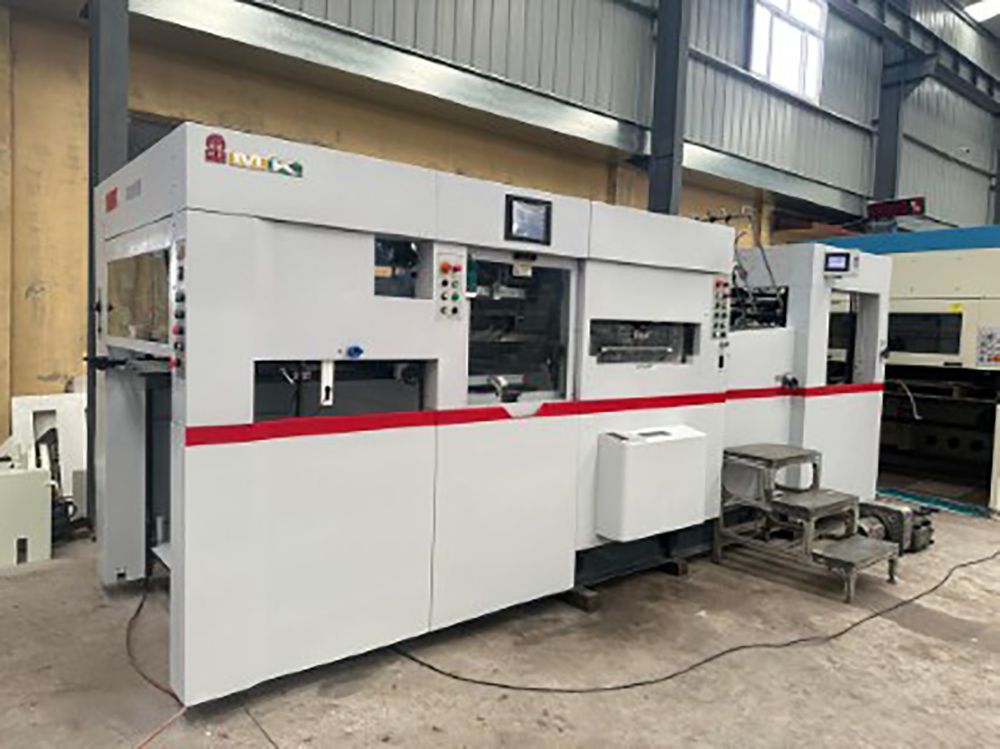

Mk MK-1020 EII

Chinese automatic die-cutting machine
Maximum sheet size: 1020 x 720 mm
Minimum sheet size: 400 x 350 mm
Maximum die-cutting size: 1020 mm x 705 mm
Paper thickness: Cardboard 0.1-2 mm, 90-2,000 g/m²
Corrugated cardboard ≤ 4 mm
Inner plate dimensions: 1074 mm x 749 mm
Pressure: 250 T
Paper output height: 1150 mm (pallet included)
Paper feed height: 1400 mm (pallet included)
Die-cutting accuracy: ≤ ± 0.15 mm
Air consumption: 0.6 to 0.7 MPa
Grapple margin: 13 ± 4 mm
Maximum speed: 7500 sheets;
Dimensions (length x width x height): 5750 mm x 5000 mm x 2110 mm (including platform)
Total weight: Approximately 16000 kg
Power: 15 kW
