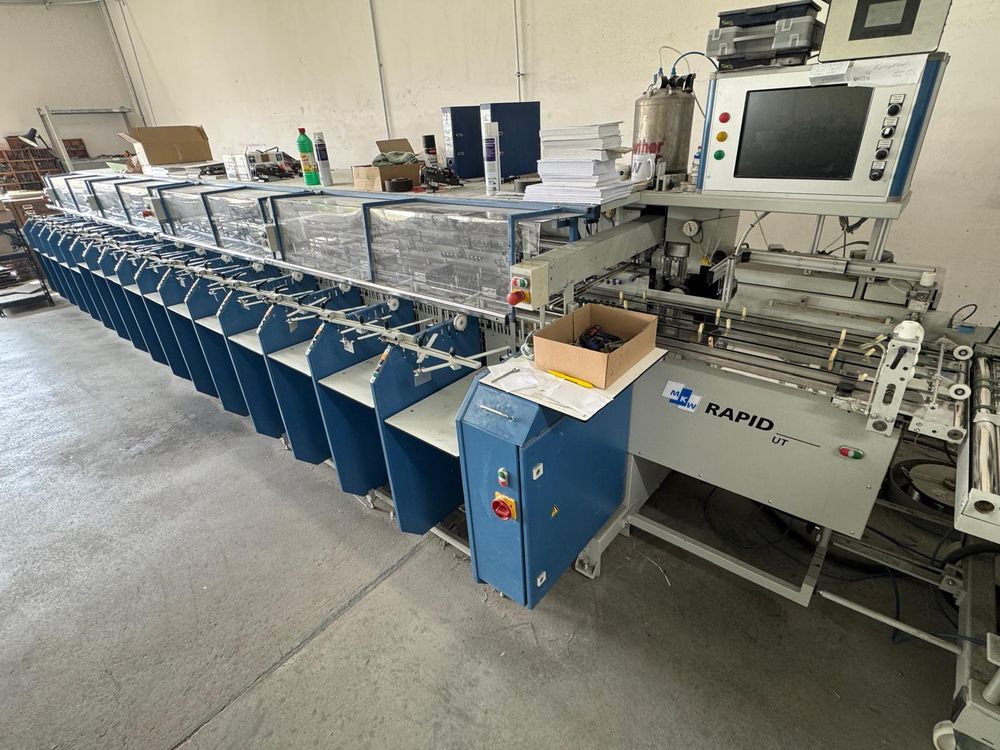

MKW RAPID 30/UT16/B3-GS

Max. book size: 350x500 mm
Min. book size: 100x140 mm
16 stations in a revolving table design
Cold glue system on the 35 x 50 cm B3 automatic collator, retrofitted in 2020
Modularly expandable cold glue system
Contactless dot-and-line gluing
10 L / 6 bar stainless steel pressure tank
Control unit with touchscreen and menu navigation
Encoder connection for control with the collator
Control for two valve outputs (expandable to 4 outputs)
Dot spacing approx. 8 - 10 mm at a product speed of approx. 90 m/min
Cable, air, and glue lines 3.00 m
Cold glue application valve for contactless dot gluing (dispersion cold glue without solvents or hardeners)
Head stitching device on the SFT350 35 x 50 cm B3 stitching-folding unit, retrofitted in 2020
Conversion kit For existing SFT350 stitching and folding unit
Device for head stitching in the existing RAPID SFT350
Interchangeable parts set for calendar and head stitching
Folding straightener for shortened cover sheets, head-side alignment
Insulated lower tool holder for third HOHNER stitching head
Cover creasing unit type MKW URL-1
Stitching and folding unit type MKW RAPID SFT 350
Head and foot trimming unit type MKW RAPID T 20
