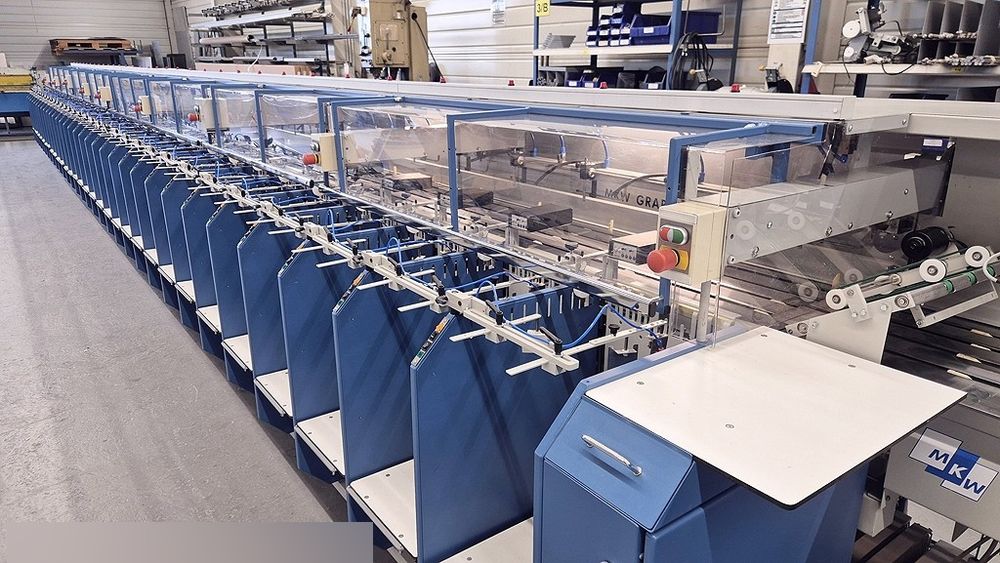

MKW RAPID UT / B3 / GS

1st machine: Collating machine
Type: - Belt conveyor table machine
Model: - RAPID UT32 / B3 / GS + VS3 +TD3
Reconditioned: * 2026 Refurbished by the manufacturer
Stations:
- 32 Stations
- Ejection station including idle station at the delivery(for ejection of faulty sets)
- Hand-feed station LEFT incl. autom. station-control for error control
- Possibility of hand feeding on the right side
Format: - 10 x 14 cm bis 35 x 50 cm
Material weight: - up to 1.000 g/qm
Material: - Single sheets, folded layers, cardboard, plastic films, etc.
Stack height: - max. 70 cm
Tandem function: - Tandem function for double use 2:1

Station handling:
- Automatic switching on/off of selected stations
- Alternating cardboard function at any station possible
- Automatic repetition in case of missing sheet
- Inserting-function at any station possible

Control:
- Electronic machine control by IPC
- Control of the delivery rollers
(for different formats per set and folded sheets)
- High quality Touchscreen-Panel for reliable and clear operation

Controls:
- Self-calibrating missing and double sheet control per station
- Missing and double sheet control with IR sensor

Special program:
- Test programs for service- and maintenance work
- Special software program for special packaging
- Storage facility for repeat jobs
Sucker: - Adjustable suction cups for optimal paper pick-up

Blast air:
- Air blast mechanism with dosing automatic front blowers
- Height-adjustable side blowers with adjustable blowing air
- Blowing air device with metered, expanded air
- Corner blowers at each station
Counter:
- Maintenance counter indicating the service intervals
- Preset counter, run counter, total counter

Delivery: high-pile delivery with non-stop unit
Type: MKW RAPID TD-3
Formats: - High stacking display with approx. 30 cm stacking capacity
Formats: - up to 35 x 50 cm
Equipment:
- Staggered delivery of sets
- Stacking function adjustable: straight stacking or offset function
- Automatic delivery onto buffer belt
- Controlled conveyor belt as a buffer section, approx. 2.0 m
- Text display for operation and monitoring

Condition: As is
Drives: New TRANS drive system for highly dynamic operation
Conveyor belt with electrically controlled clutch
Drive: Maintenance-free stack lift drive
Maintenance-free stack lift drives via three-phase gear motors
Power supply: This machine is connected to 400 V, 50 Hz.
Air supply: Pressure-vacuum pump in sound-absorbing casing
Power save:
Energy saving system with automatic switching on/off of all drives
Automatic activation and deactivation of the required pumps
Safety devices: Safety hoods made of shatterproof polycarbonate
Important: Connection requirements of any power utility note!
CE mark: The machine bears the CE mark
