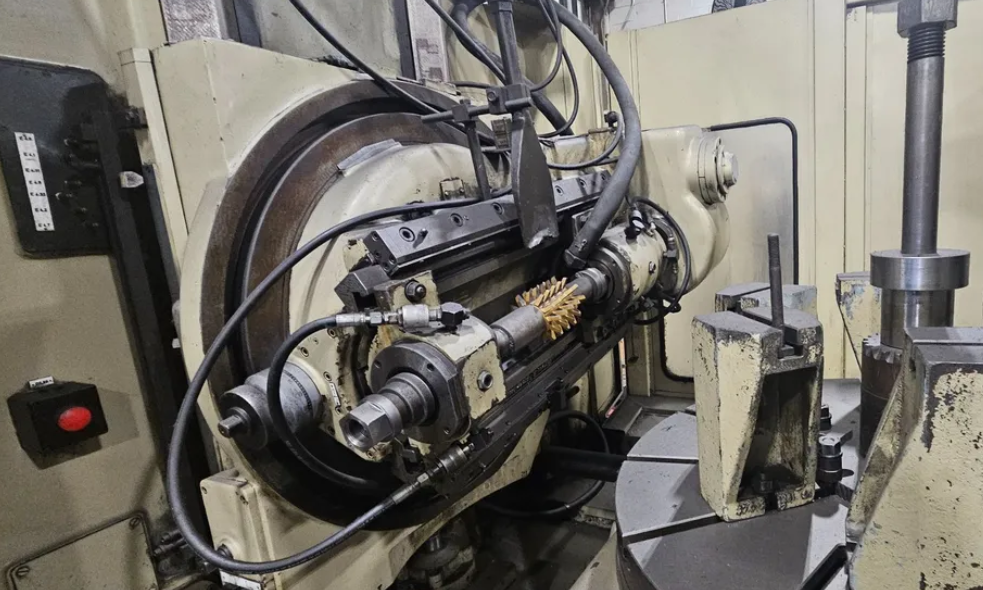

Modul ZFWZ 1250 200 RPM Gear Hobber

Maximum gear diameter: 1,250 mm
Vertical configuration
Cutting width: 600 mm
Module range: 2–16
Maximum hob size: 240 × 280 mm
Table diameter: 1,020 mm
Spindle speed: 28–200 RPM
Axial feed: 0.28–8 mm/min
Radial feed: 0.1–2 mm/min
Tangential feed: 0.16–4 mm/min
Stand tilt: ±45°
Main motor: 5 / 19.5 kW
Rapid motor: 12.5 kW
Maximum workpiece diameter without tailstock: 1,250 mm
Maximum workpiece diameter with tailstock: 800 mm
Change gears
Hob arbors
Work arbor
Machine dimensions: 4.5 × 2.1 × 3.3 m
Machine weight: 16.2 t
