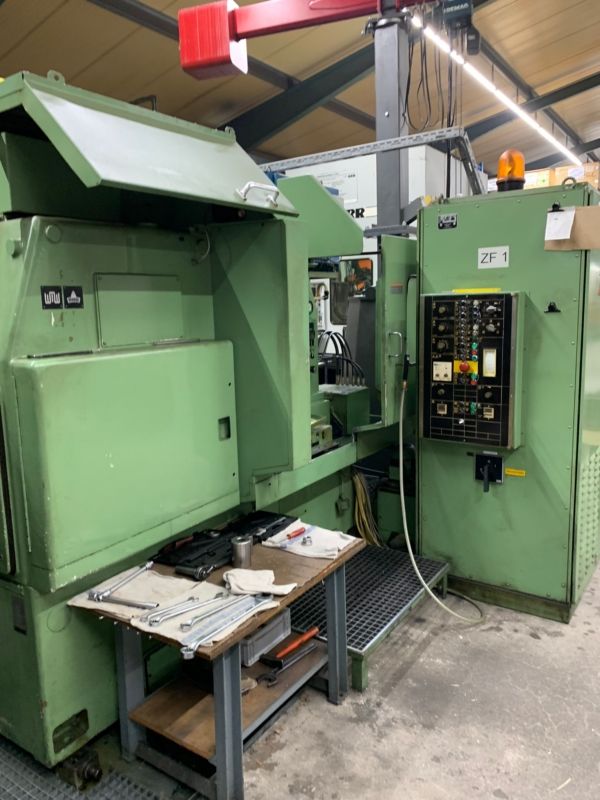

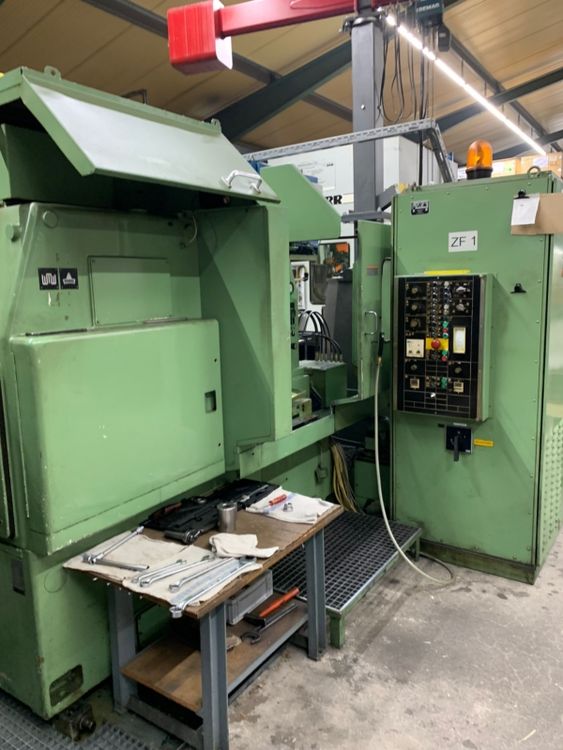

Modul ZFWZ 400/4 Cutter speed: 50-200 rpm Maximum Wheel Diameter: 400 mm

Minimum Module: 1
Maximum Module: 6
Table Diameter: 370 mm
Maximum Wheel Diameter (with counter support): 340 mm
Maximum Wheel Diameter (without counter support): 400 mm
Maximum Axial Offset: 275 mm
Maximum Tangential Adjustment: 100 mm
Maximum Tooth Helix Angle: 45°
Maximum Cutter Diameter: 145 mm
Maximum Hob Length: 170 mm

Cutter Speed: 50–200 rpm
Axial Feed (continuously adjustable): 0.2–10 mm/rev
Tangential Feed (continuously adjustable): 0.1–5 mm/rev
Radial Feed (spur gears): 0.1–4 mm/rev
Radial Feed (worm gears): 0.025–1 mm/rev
Rapid Traverse Axial: 500 mm/min
Rapid Traverse Tangential: 250 mm/min
Radial Feed (spur gears): 400 mm/rev
Radial Feed (worm gears): 100 mm/rev
Motor Power: 7.4 kW

Machine Weight: 5000 kg
Electrical Cabinet Weight: approx. 800 kg
Auxiliary Units Weight (hydraulic unit, coolant tank, chip conveyor): approx. 700 kg
Length (chain drive): 2950 mm
Length (DC drive): 3350 mm
Width: 3100 mm
Height (machine): 1980 mm
Height (electrical cabinet): approx. 2200 mm
Height (machine with DC drive): approx. 2150 mm
